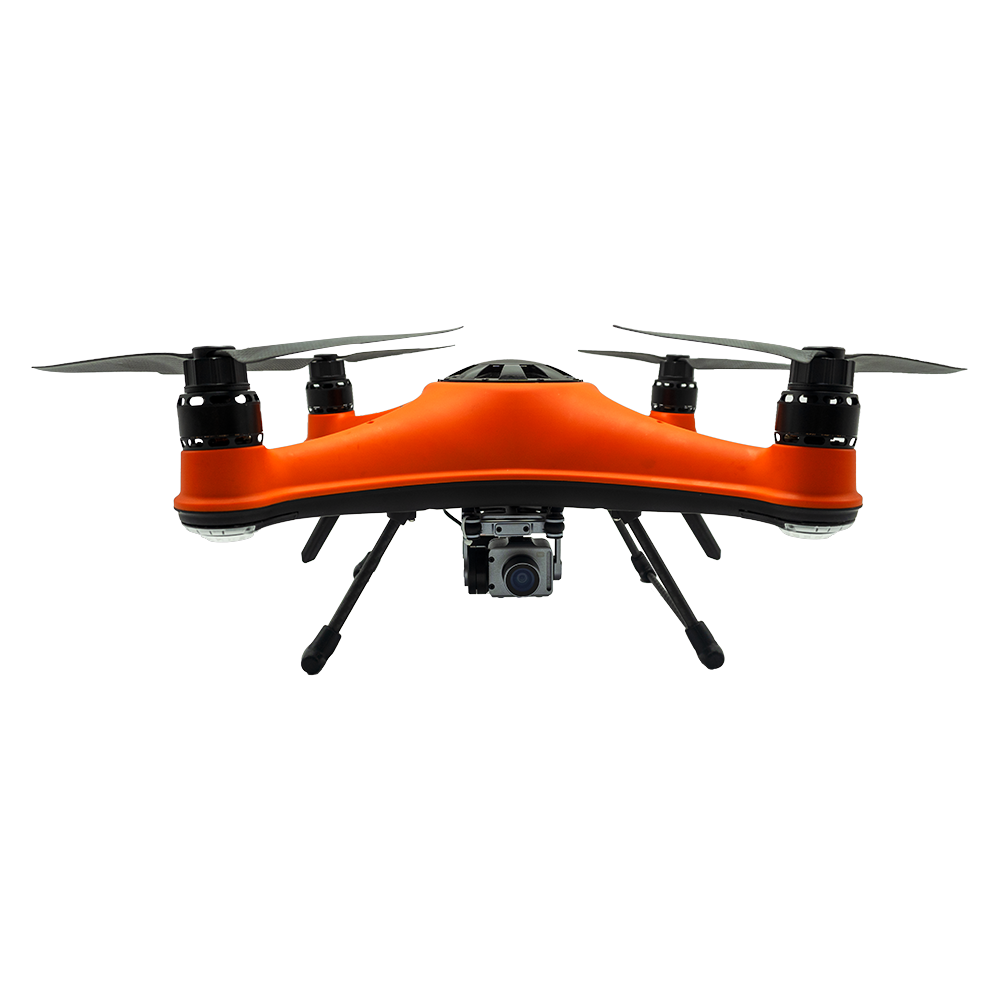

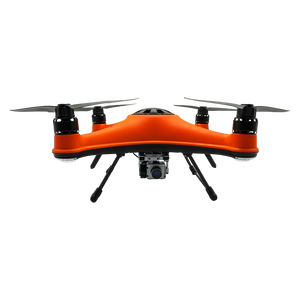

SwellPro Fisherman FD3 front view studio photo

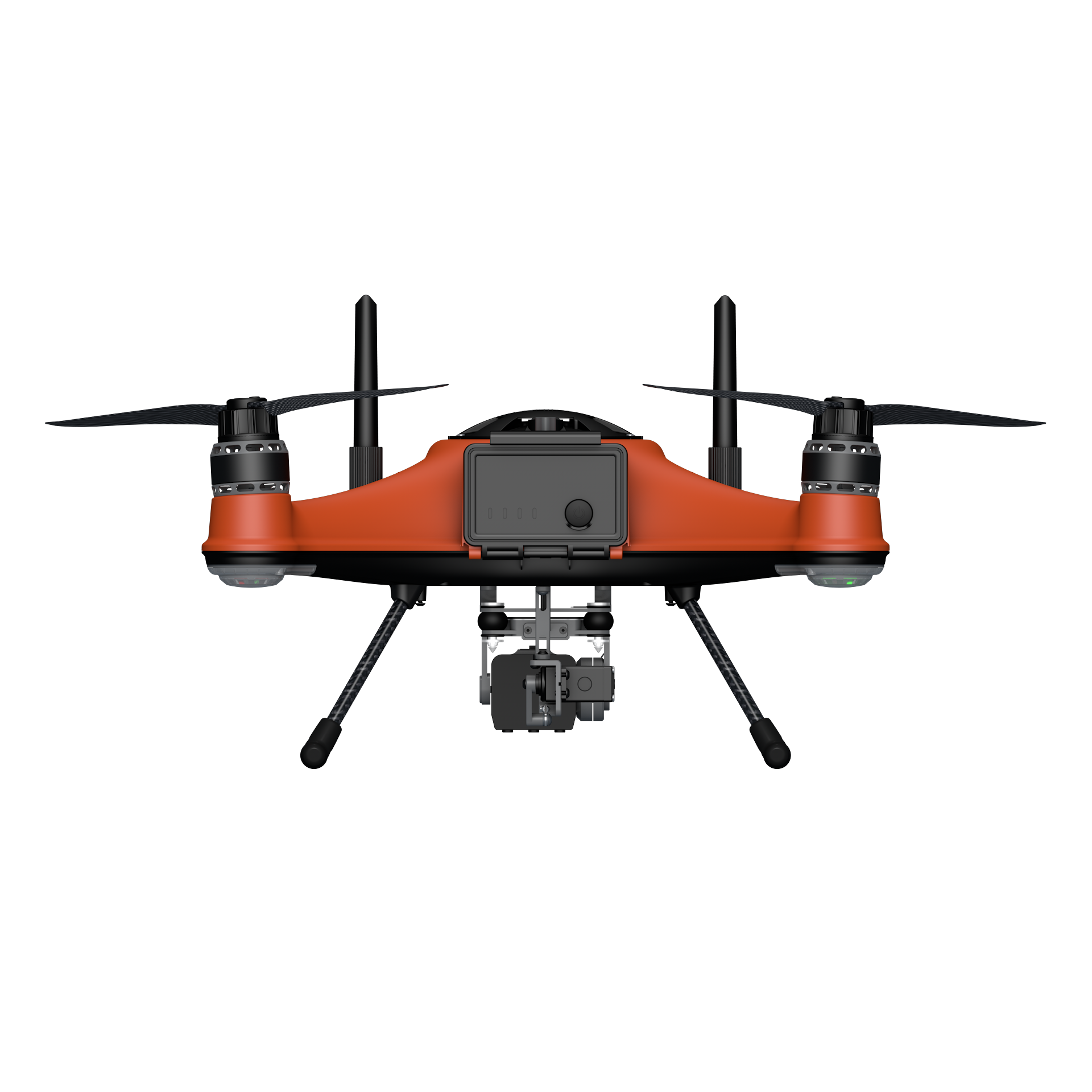

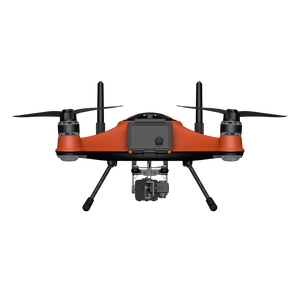

SwellPro Fisherman FD3 front render

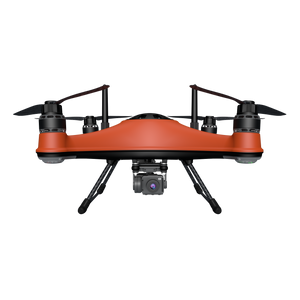

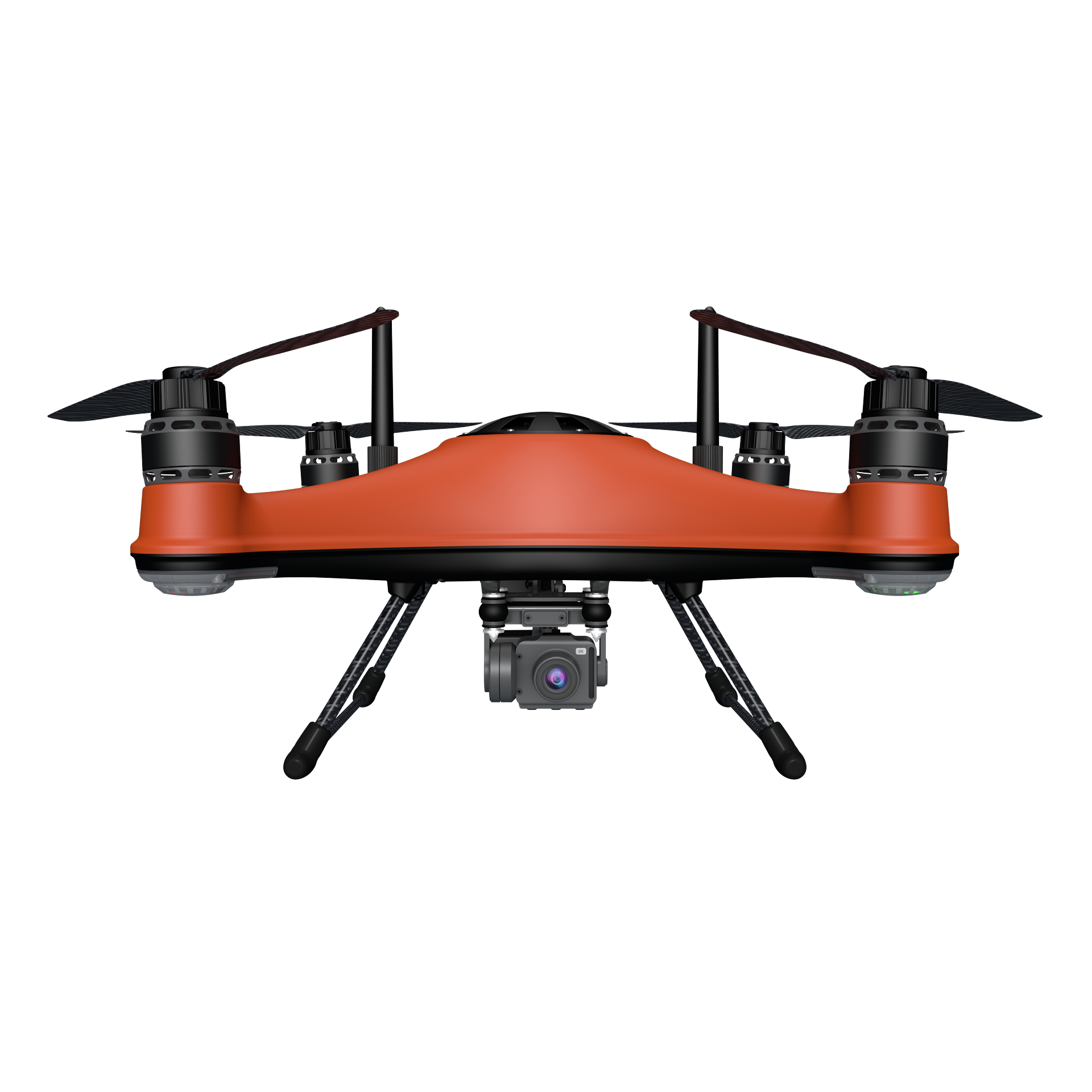

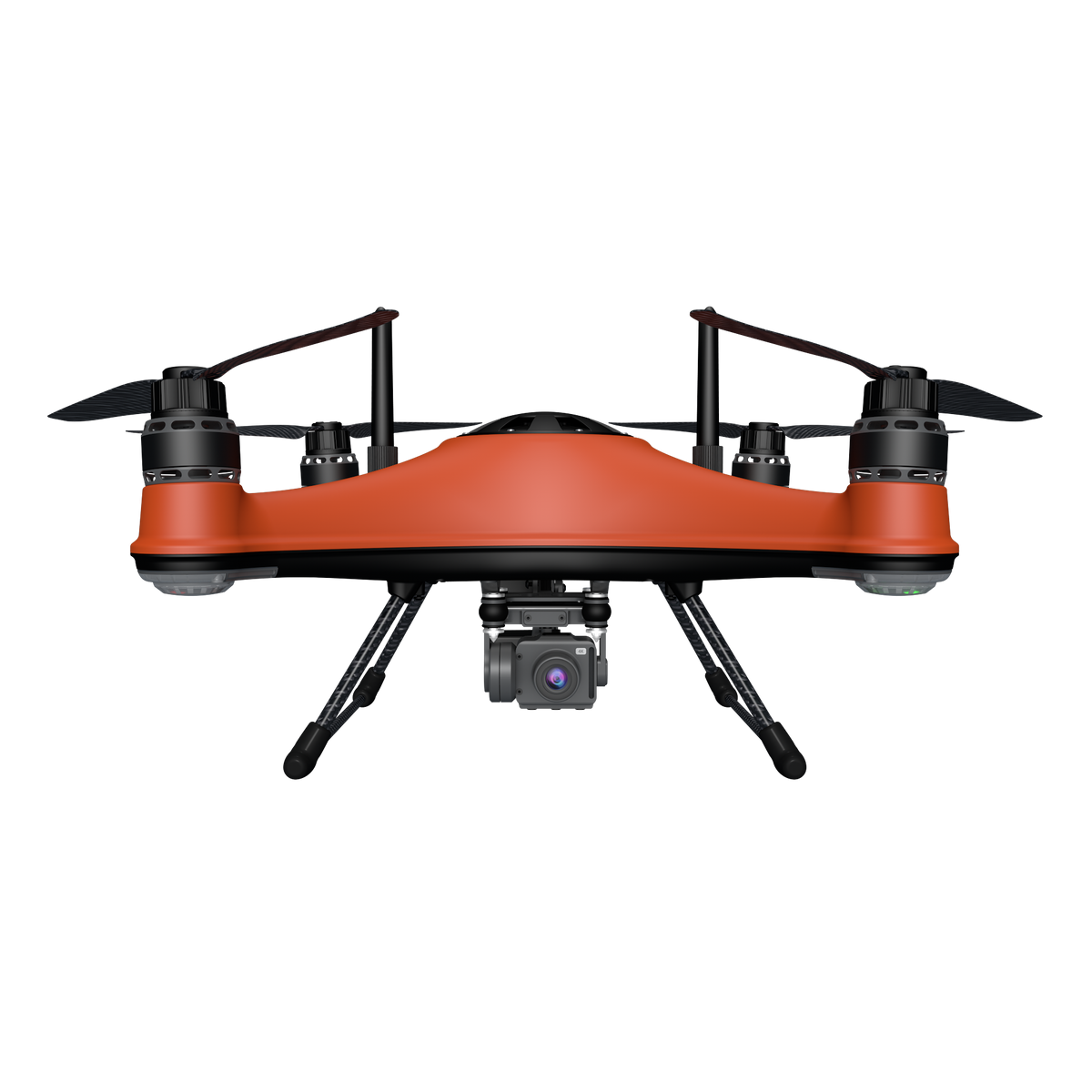

SwellPro Fisherman FD3 close front render showing 4K camera

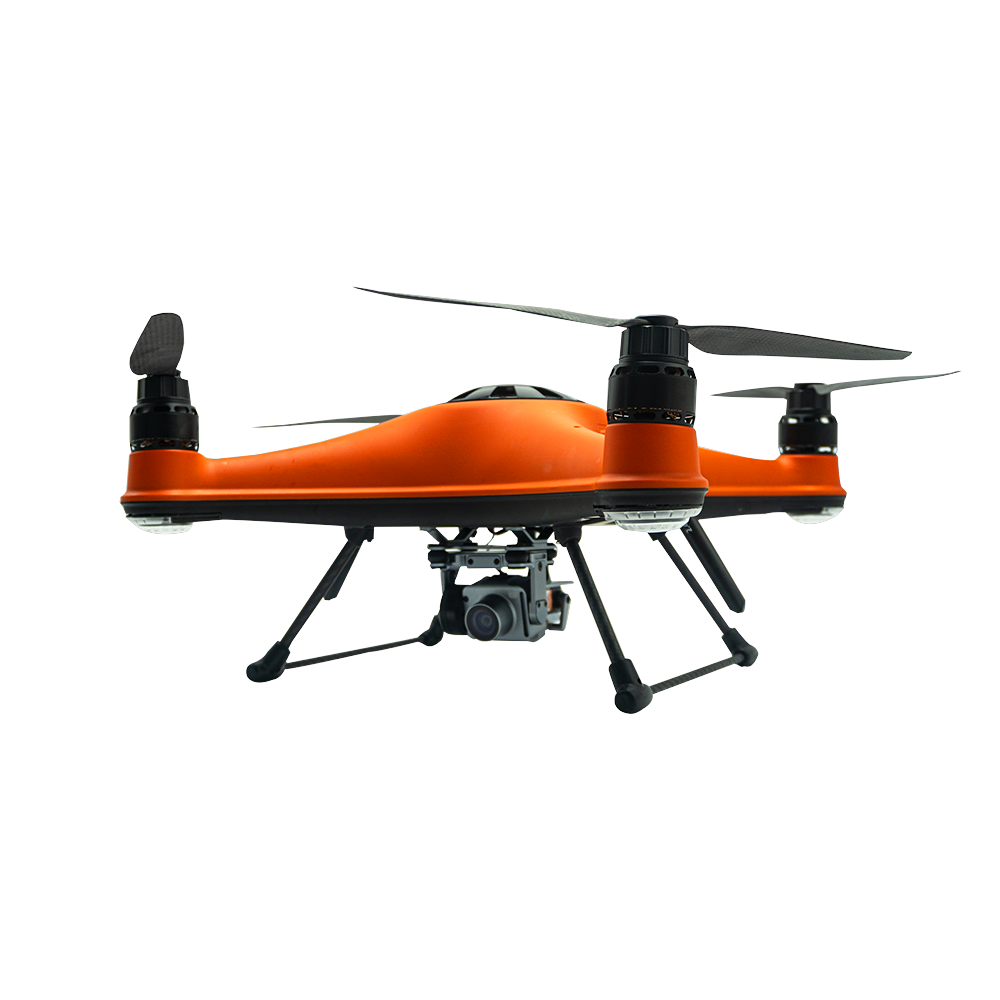

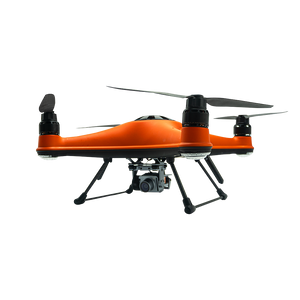

SwellPro Fisherman FD3 three-quarter view

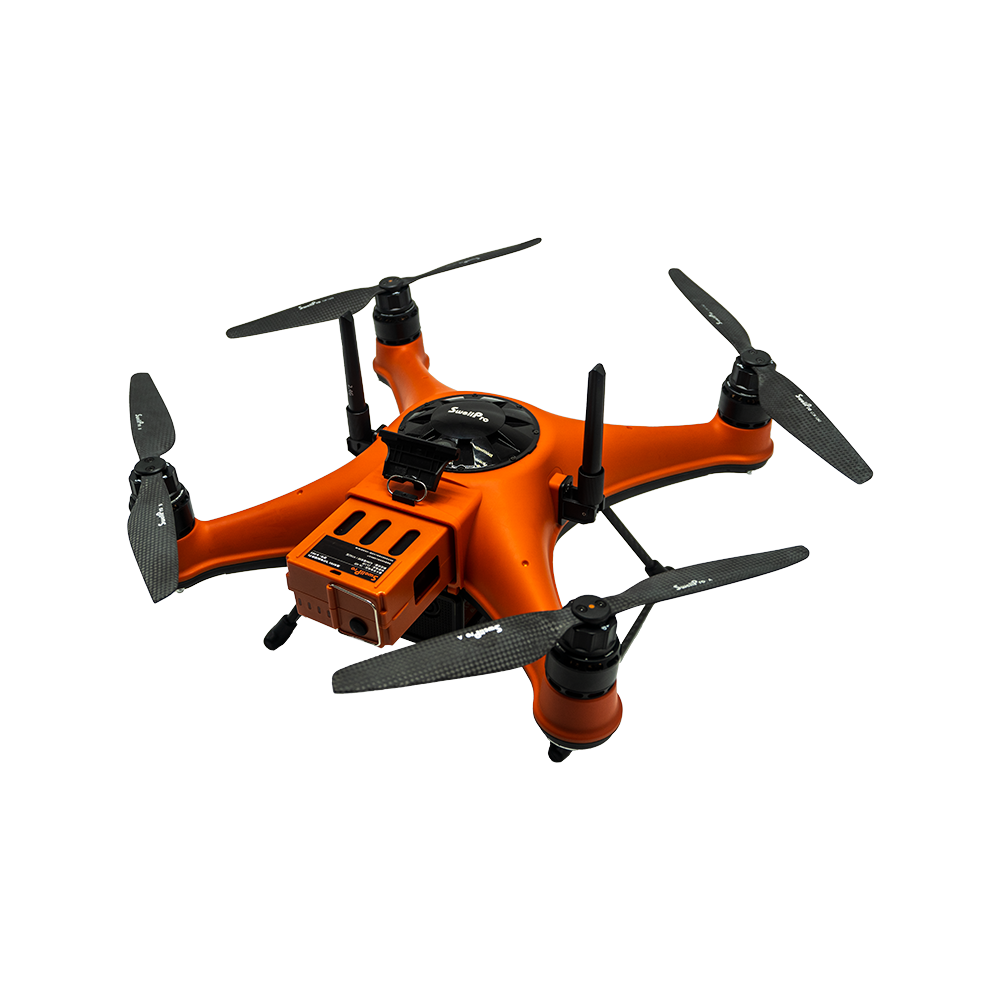

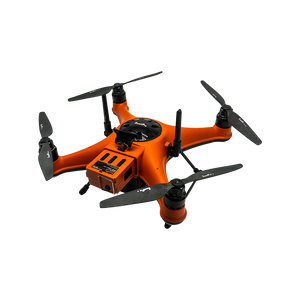

SwellPro Fisherman FD3 alternate three-quarter view showing battery

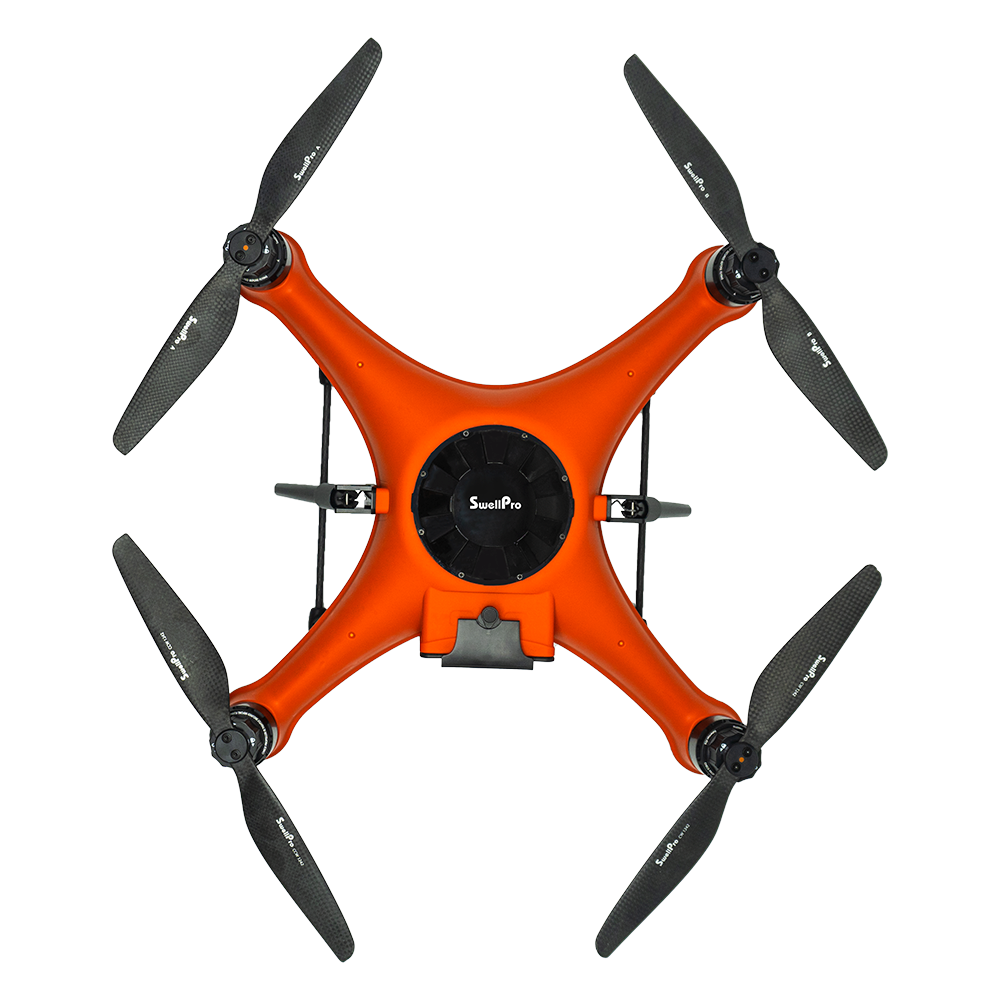

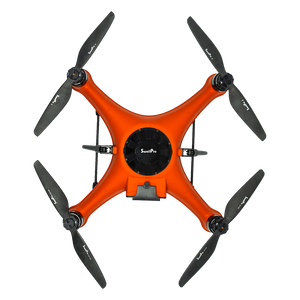

SwellPro Fisherman FD3 top-down view

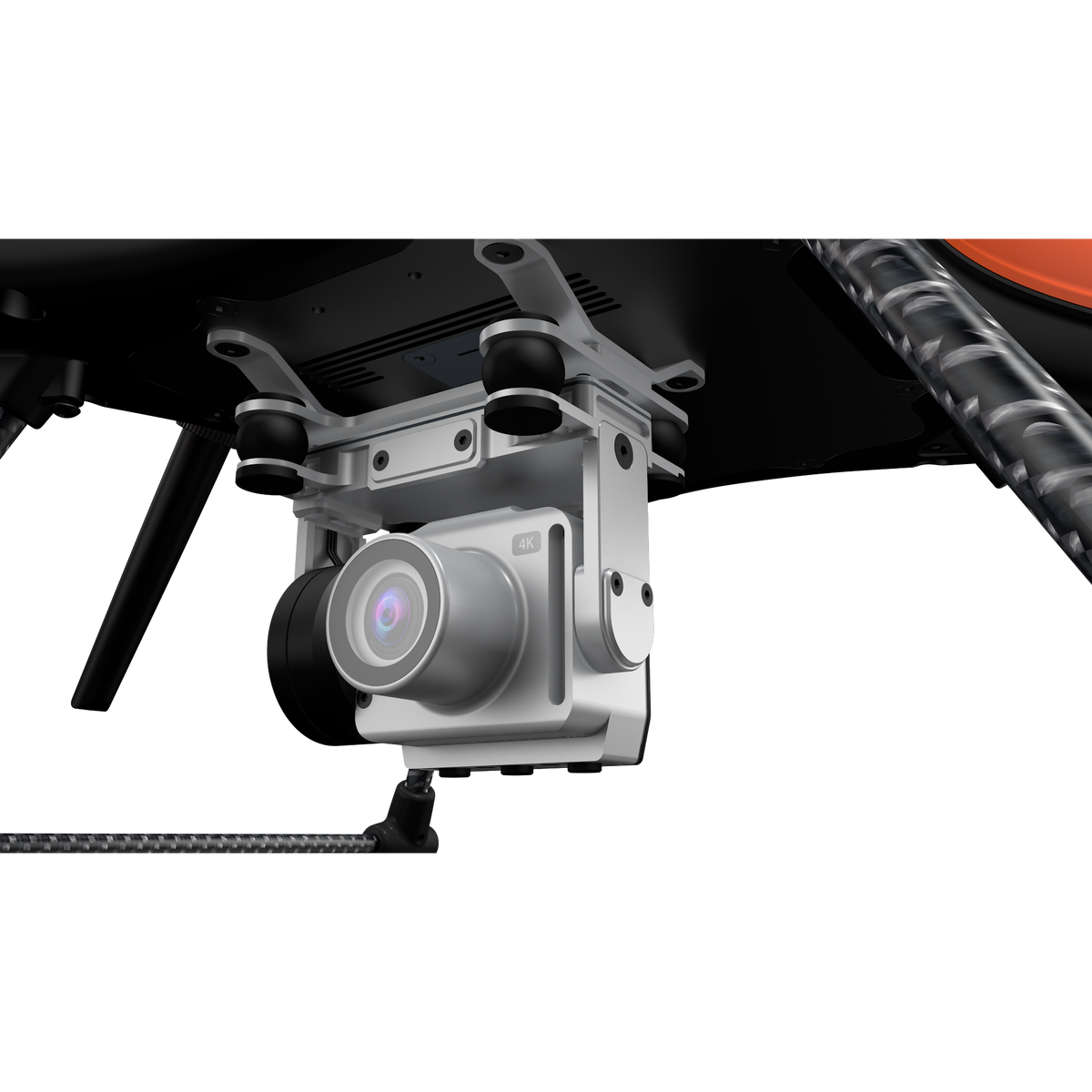

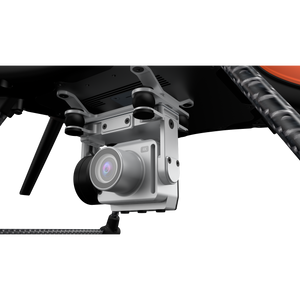

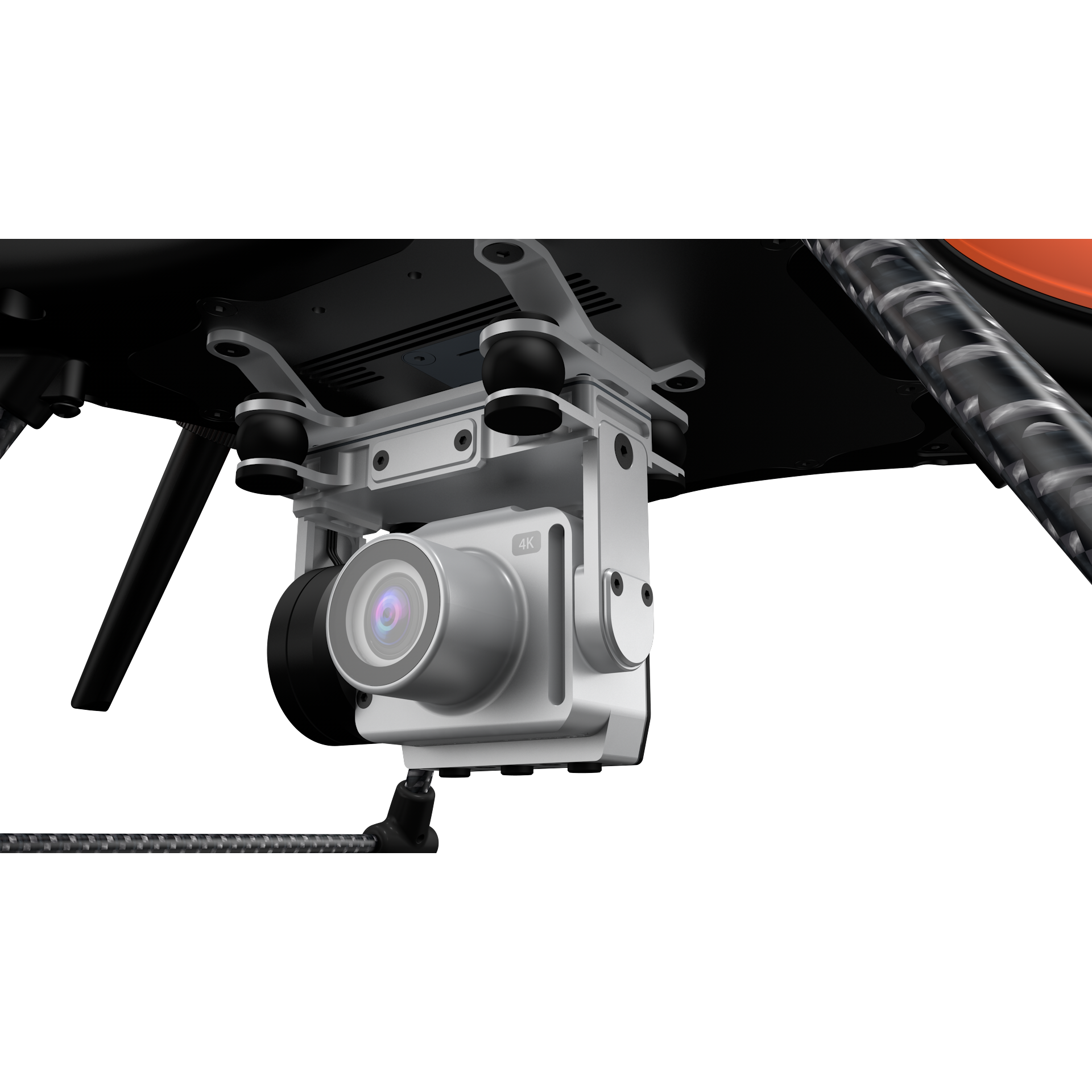

SwellPro Fisherman FD3 4K camera gimbal module

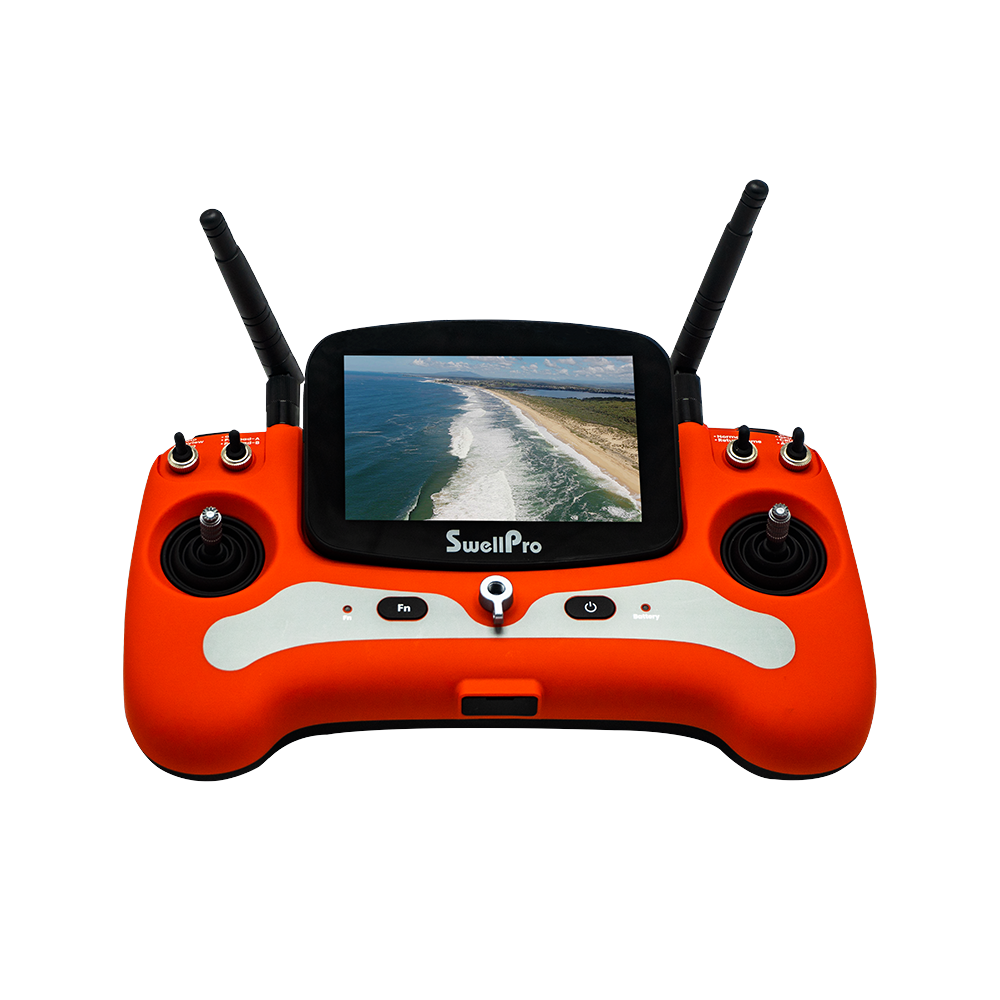

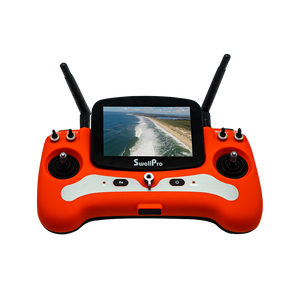

SwellPro Fisherman FD3 controller with color screen

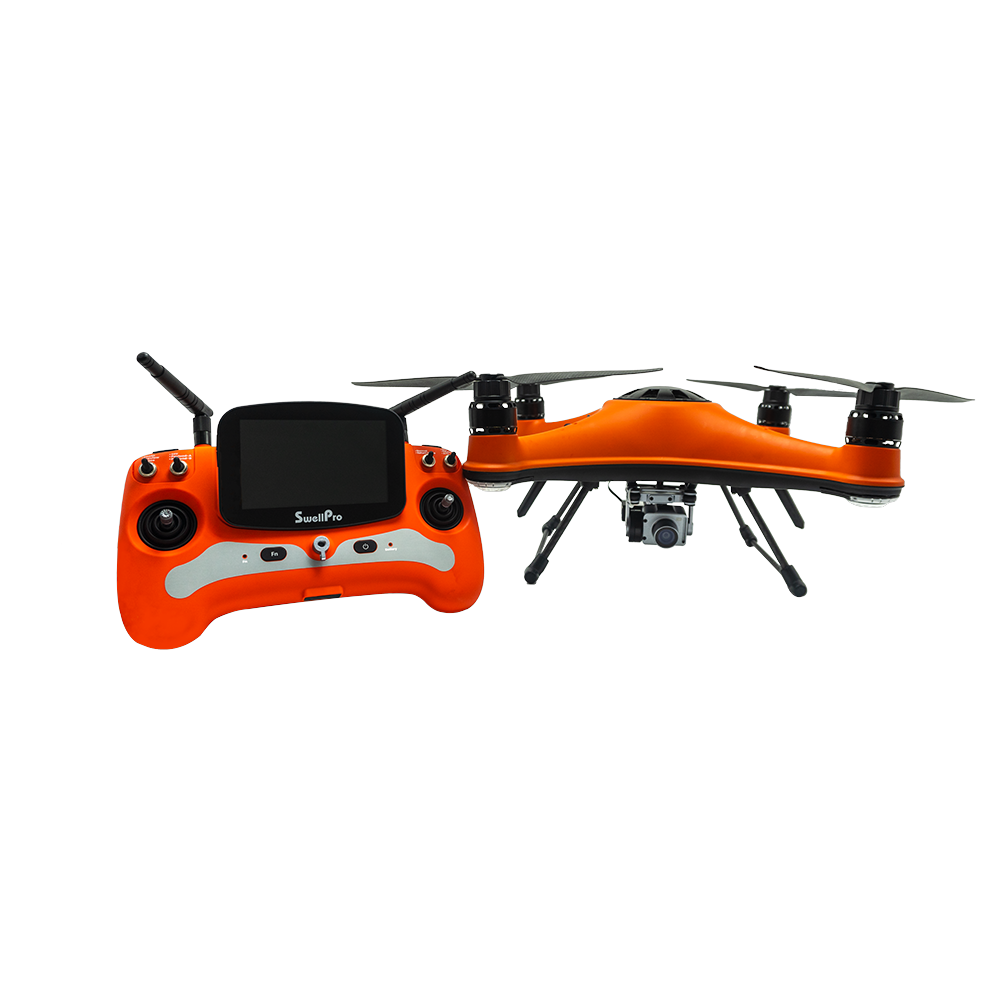

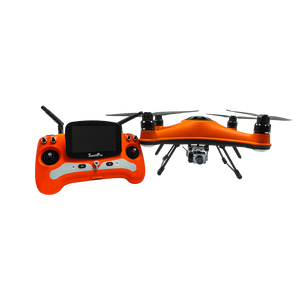

SwellPro Fisherman FD3 drone and controller together
Angler with SwellPro Fisherman FD3 flying behind him

SwellPro Fisherman FD3

$2,614.99
Fly More Combo

Waterproof fishing drone built for anglers who want Fisherman-level flight performance in a lighter, more compact airframe than the Max. IP67-rated airframe (dust-tight, and rated for accidental submersion to 1 m / 3.3 ft for up to 30 minutes), up to 2 kg payload capacity.

Key Features

  • IP67 waterproof airframe, rated for saltwater use
  • 4K stabilized camera with live video feed to the remote controller
  • Max payload capacity of 2 kg / 4.4 lb for bait release
  • Up to 1.5 km (1 mi) flight range and 1.2 km (0.74 mi) live video range
  • Up to 27 minutes of flight time per battery (no wind, no load)
  • Max wind resistance of 18 m/s / 40 mph (35 knots)

Aircraft

Waterproof rating IP67
Weight (incl. battery, propellers, camera & payload release) 2.54 kg / 5.5 lb
Size (w/o propellers) 372 x 372 x 202 mm / 14.6 x 14.6 x 7.9 in
Max flight speed GPS 10 m/s / 22 mph; ATTI (manual mode) 18 m/s / 40 mph (no payload), 14 m/s / 31 mph (max payload)*
Max flight altitude 120 m / 393 ft
Max flight range 1.5 km / 1 mi**
Max live video range 1.2 km / 0.74 mi**
Max payload capacity 2 kg / 4.4 lb
Flight time Up to 27 mins per battery (no wind & no load)
Max wind speed resistance 18 m/s / 40 mph / 35 knots
Hovering precision ±0.5 m / ±1.6 ft

*GPS mode uses satellite positioning to stabilize and auto-hover the drone, which caps its top speed for control and safety. ATTI (manual mode) removes that cap for a higher top speed, at the cost of auto-stabilization.

**Flight range is how far the drone can fly and still receive controller signals. Live video range is shorter because video needs more bandwidth than the control signal. The drone can still fly and be controlled beyond where the video feed starts to degrade.

Remote Controller

Weight 0.71 kg / 1.56 lb
Waterproof rating none
Size 276 x 190 x 74 mm / 11 x 7.5 x 3 in
Operating frequency 2.4 GHz + 5.8 GHz
Battery 3000 mAh
Working time 5 hours
Charging time 3 hours
Screen 12.7 cm / 5 in color display

Camera

Video resolution 4K 30fps
Photo resolution 12 MP
Memory card microSD, up to 128GB

Flight Battery

Capacity 4200 mAh
Weight 0.72 kg / 1.57 lb
Charging time 120 mins

Bait Release

Waterproof rating IP67
Max payload capacity 2 kg / 4.4 lb

What's in the Box

  • Aircraft x 1
  • Remote controller x 1
  • Camera x 1
  • Flight battery x 1
  • Charger x 1
  • Propellers: 1 full set included (2 pairs)
  • Bait release x 1
  • USB-C cable x 1
  • Charging cable x 1
  • Power adapter x 1
  • Phone mount x 1
  • Carry case x 1
â–¶Technical Specifications (tap to expand full specs)

Aircraft

Max ascend speed 3 m/s / 7 mph
Max descend speed 2 m/s / 4.5 mph
Max tilt angle 30°

Aircraft — Radio & Positioning

Satellite positioning system GPS / Galileo / BeiDou
RC operation frequency 2.405 - 2.475 GHz
Image transmission frequency 5.725 - 5.825 GHz
RC transmitter power (EIRP) < 33 dBm (FCC), < 20 dBm (CE)
Image transmitter power (EIRP) < 33 dBm (FCC), < 14 dBm (CE)
Working temperature -10°C ~ 40°C / 14°F ~ 104°F
Certifications CE / FCC / ROHS / RCM

Flight Battery & Charger

Battery voltage 23.1V
Battery type 6S LiHV
Max charging current 5A
Charger output 25.2V
Charger supported battery types 6S LiHV
Charger input 100 - 240V
Charger max power 150W

Remote Controller

Battery type 2S
Operating frequency 2.405 - 2.475 GHz, 5.725 - 5.825 GHz
Transmitter power (EIRP) < 26 dBm (FCC), < 20 dBm (CE)
Screen resolution 800 x 480 px
Screen brightness 500 cd/m²

Camera

Image sensor 1/2.3″ CMOS, 12MP
Lens F4.5, 3mm f/2.65, FOV 92.6°
Video resolution 4K 30fps | 2.7K 60fps | 1080p 120/60/30fps | 720p 240/120/60fps
Photo resolution 4000 x 3000 (4:3), 3840 x 2160 (16:9)
Stabilization 1-axis (tilt), -90° to 0°
Memory card microSD, up to 128GB, write speed ≥ 60 MB/s, Class 10 or UHS-1 recommended

Bait Release

Size 75 x 50 x 37.5 mm / 2.9 x 1.9 x 1.4 in
Weight 100 g / 3.5 oz
