SwellPro Fisherman Max FD2

FD2 Model
Fly More Combo
Float Arms

Waterproof fishing drone built for long-range bait drops, heavier payloads, and all-weather use. IP67-rated airframe (dust-tight, and rated for accidental submersion to 1 m / 3.3 ft for up to 30 minutes), up to 3.5 kg payload capacity.

Key Features

  • IP67 waterproof airframe, rated for saltwater use
  • Max payload capacity of 3.5 kg / 7.7 lb for bait release
  • Up to 1.5 km (1 mi) flight range and 1 km (0.7 mi) live video range
  • Up to 30 minutes of flight time per battery (no wind, no load)
  • Foldable design: 522 x 522 x 192 mm (20 x 20 x 7.5 in) unfolded, 306 x 266 x 192 mm (12 x 10.5 x 7.5 in) folded
  • Max wind resistance of 18 m/s / 40 mph (35 knots)

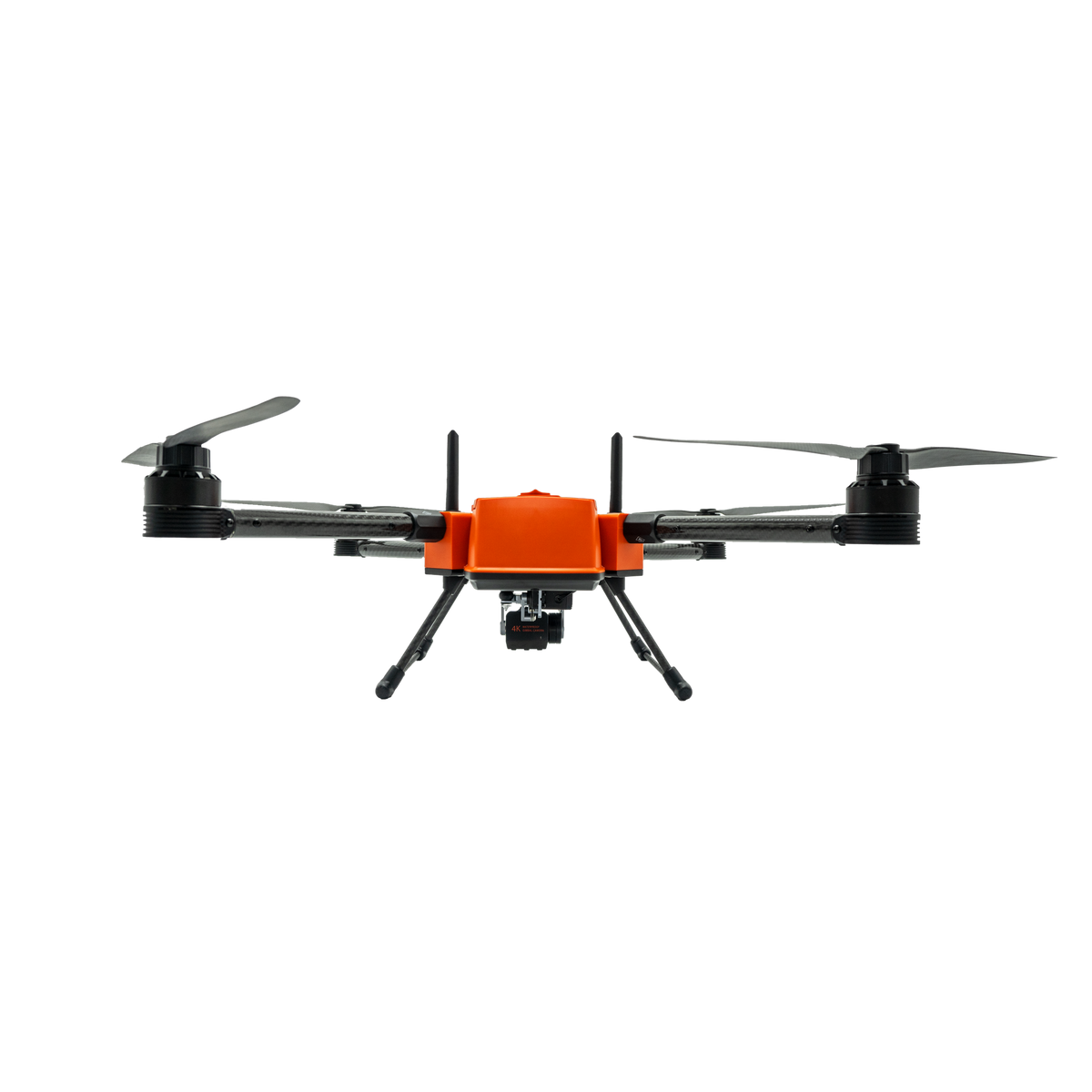

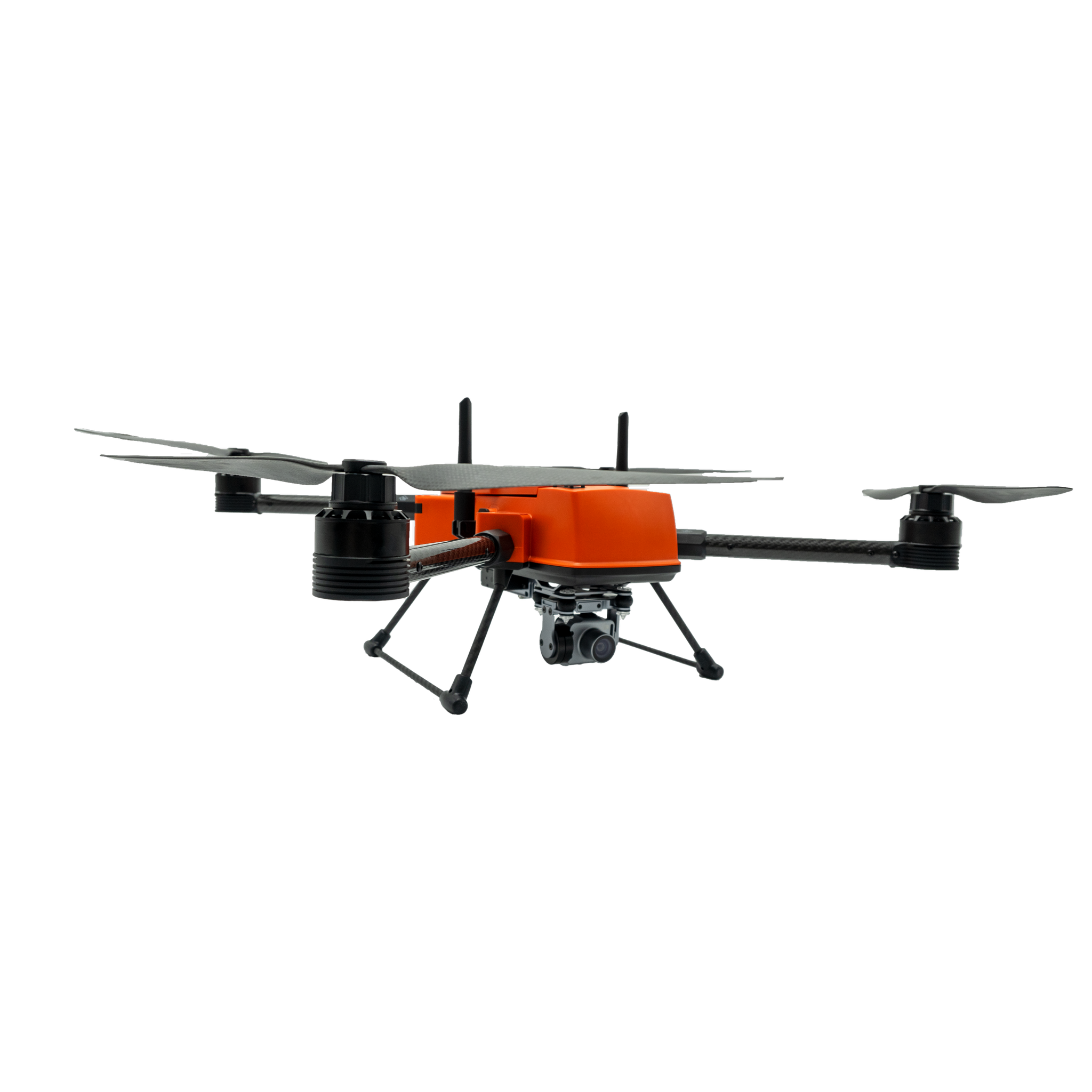

Advanced version only: 4K video recording with a live camera feed to the remote controller.

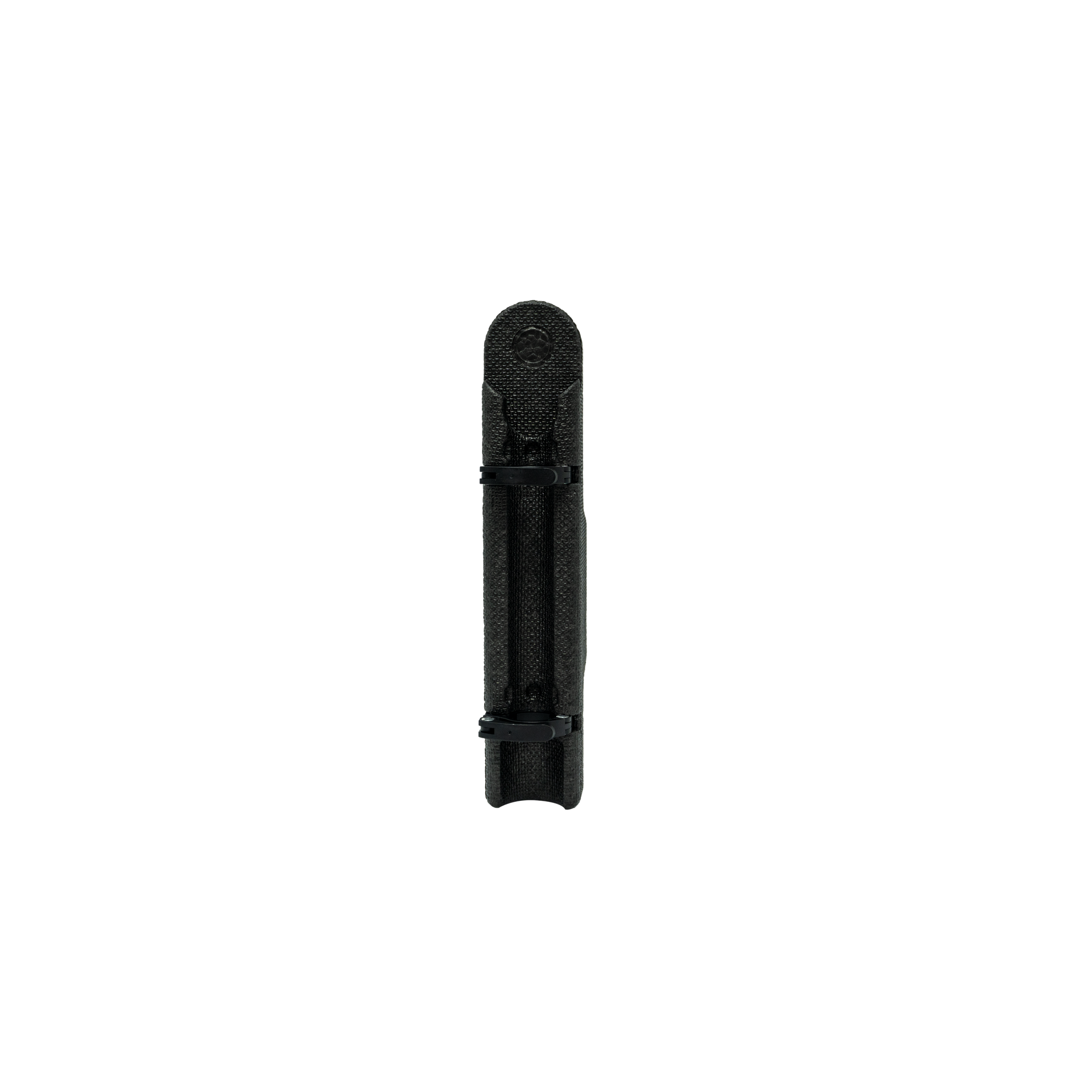

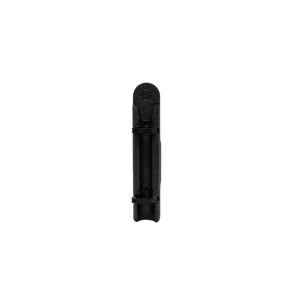

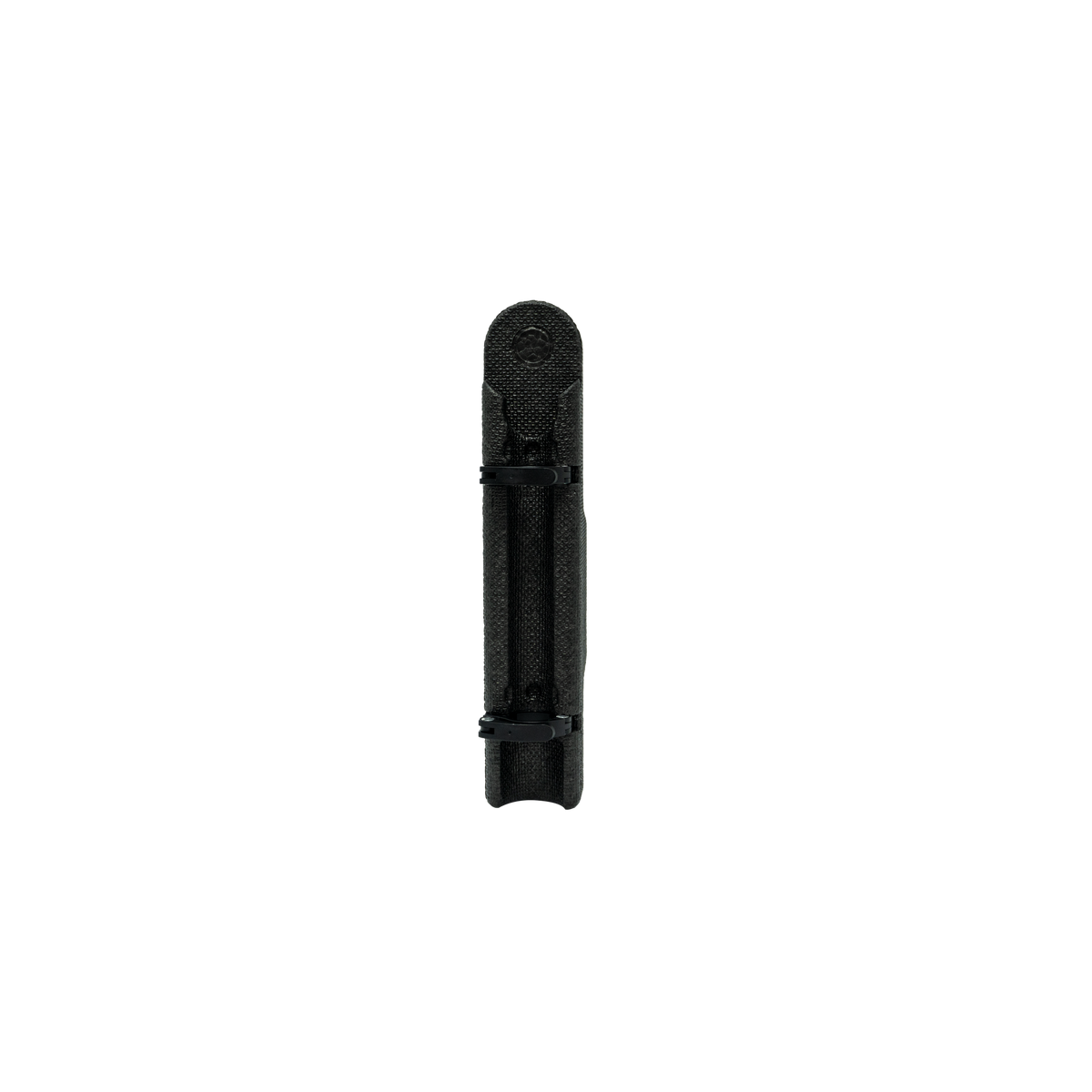

Float arms are required for the FD2 to float on the water. They can be added as an optional extra.

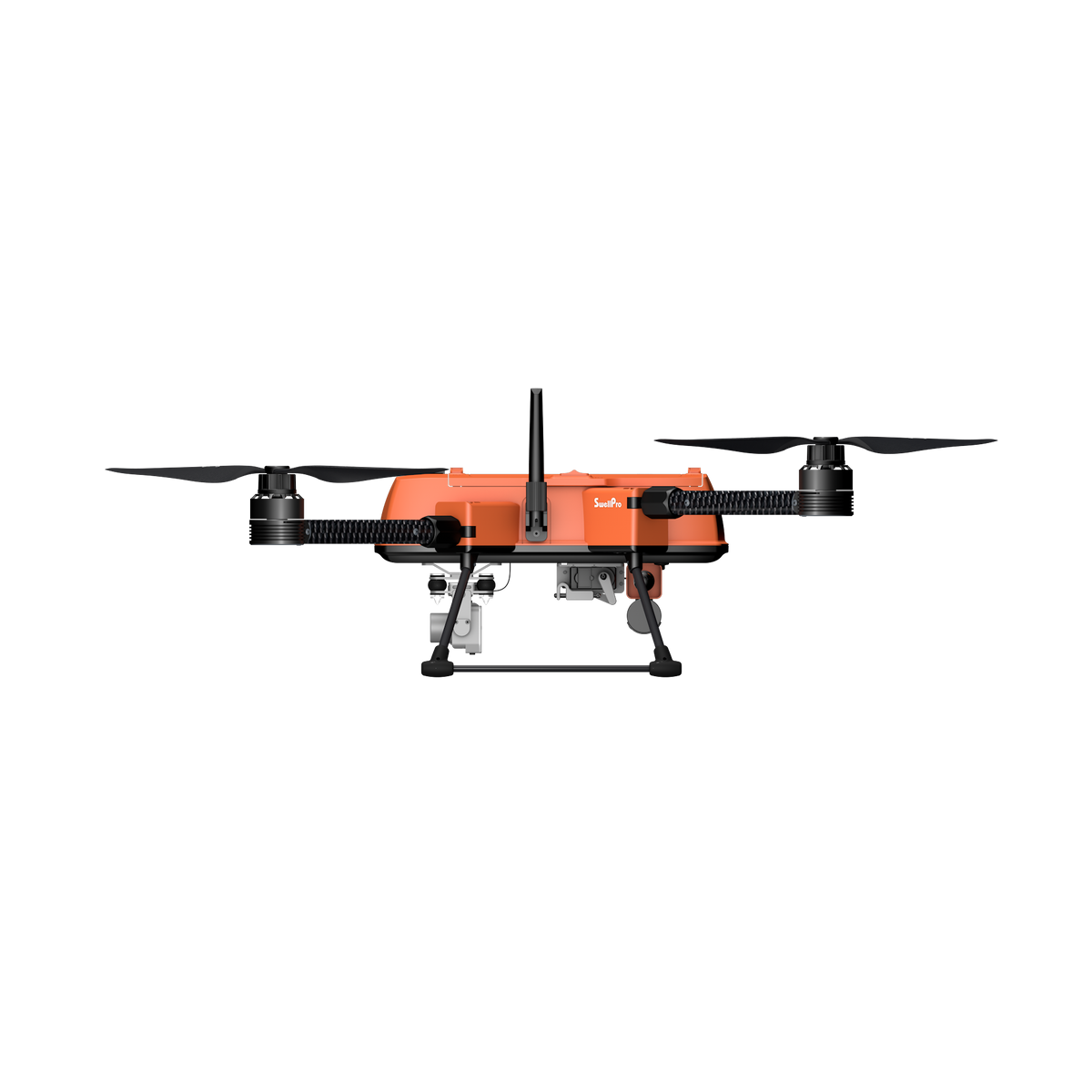

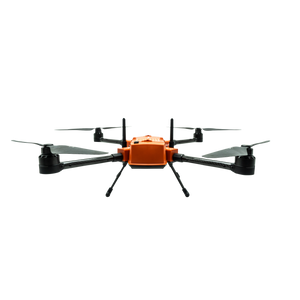

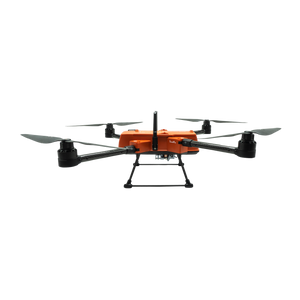

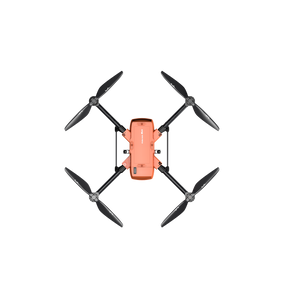

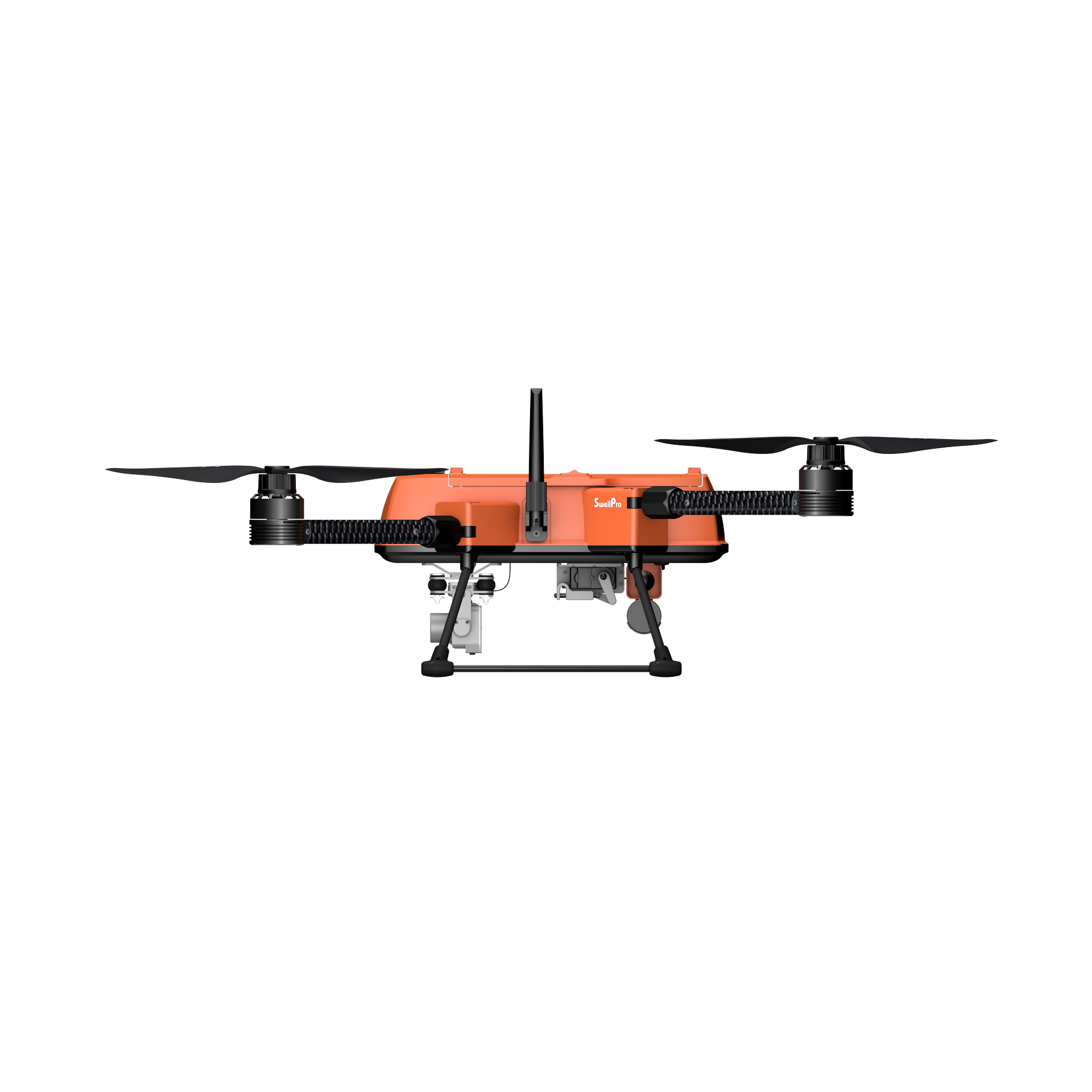

Aircraft

Waterproof rating IP67
Weight (including battery) 3.78 kg / 8.3 lb
Size, unfolded (w/o propellers) 522 x 522 x 192 mm / 20 x 20 x 7.5 in
Size, folded (w/o propellers) 306 x 266 x 192 mm / 12 x 10.5 x 7.5 in
Max flight speed Up to 20 m/s / 45 mph in ATTI (manual mode); up to 10 m/s / 22 mph in GPS-stabilized mode*
Max flight altitude 120 m / 400 ft
Max flight range 1.5 km / 1 mi**
Max live video range 1 km / 0.7 mi**
Max payload capacity 3.5 kg / 7.7 lb
Flight time Up to 30 mins per battery (no wind & no load)
Max wind speed resistance 18 m/s / 40 mph / 35 knots
Hovering precision ±0.5 m / ±1.6 ft
Working temperature -10°C ~ 40°C / 14°F ~ 104°F

*GPS mode uses satellite positioning to stabilize and auto-hover the drone, which caps its top speed for control and safety. ATTI (manual mode) removes that cap for a higher top speed, at the cost of auto-stabilization.

**Flight range is how far the drone can fly and still receive control signals. Live video range is shorter because video needs more bandwidth than the control signal — the drone can still fly and be controlled beyond where the video feed starts to degrade.

Remote Controller & Camera

Compare the two remote controller versions below. Prices shown reflect your currently selected Fly More Combo and Float Arms options. The box outlined in bold matches whichever "FD2 Model" option you have selected above; bolded rows show where the two differ.

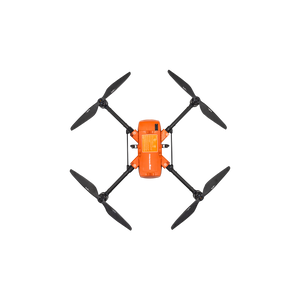

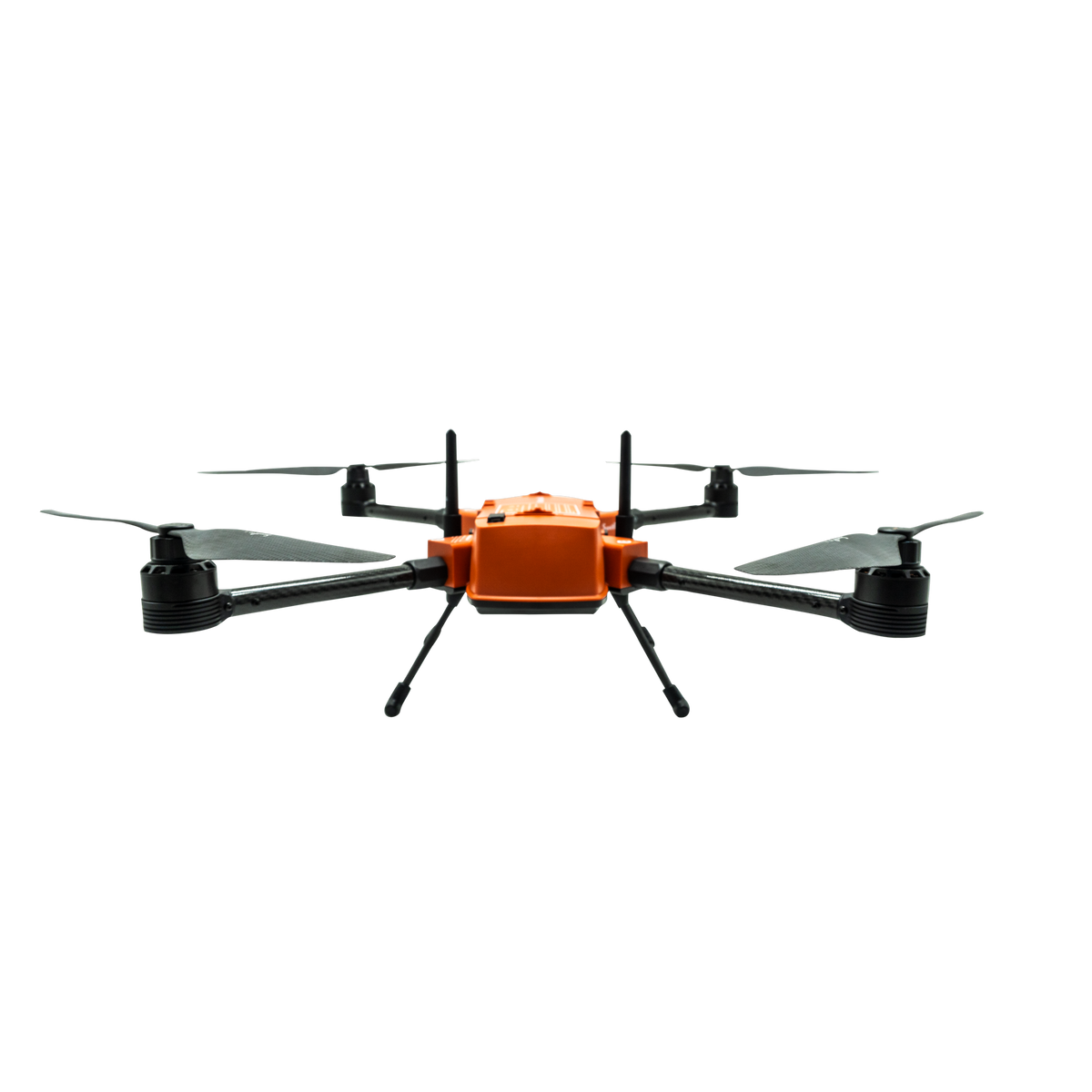

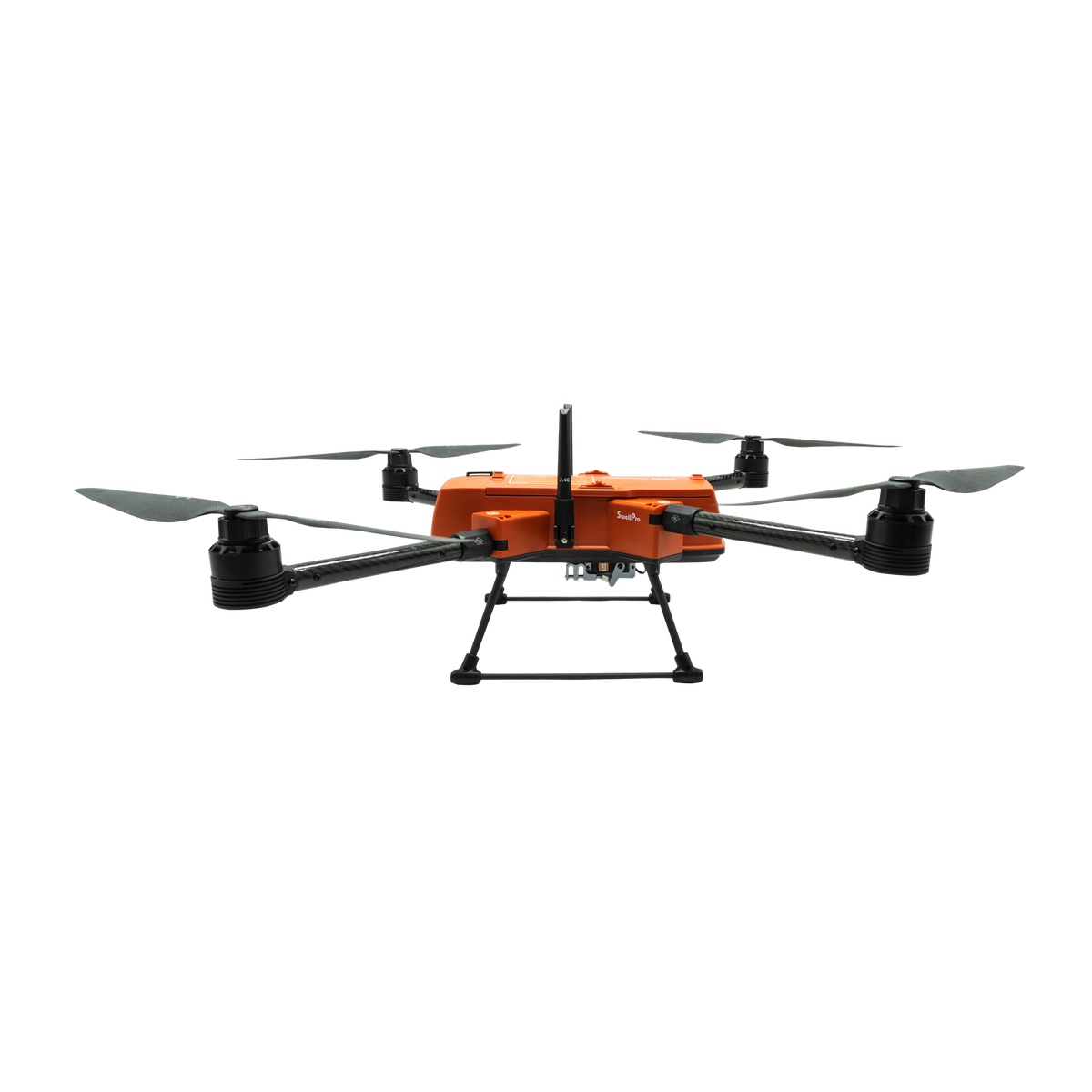

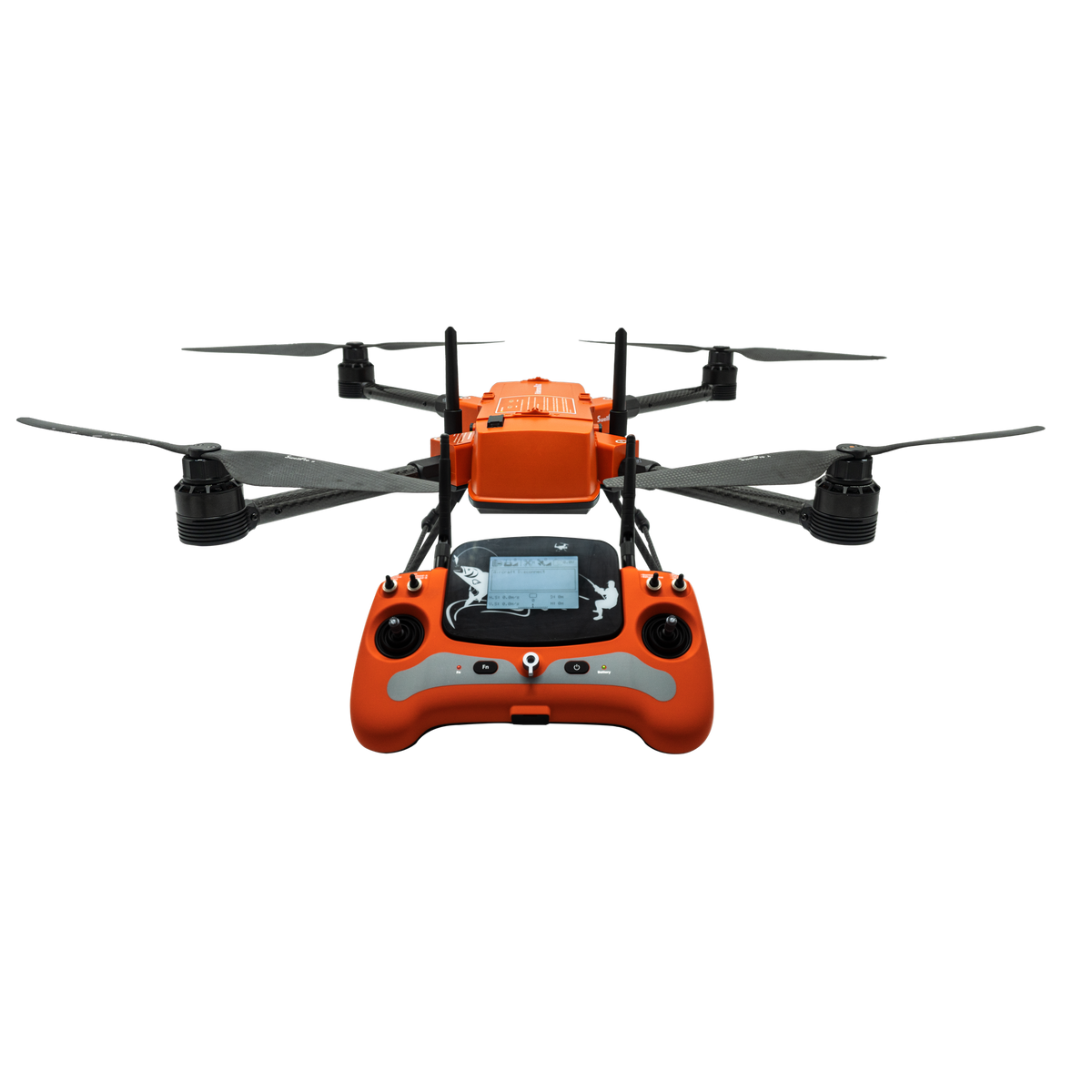

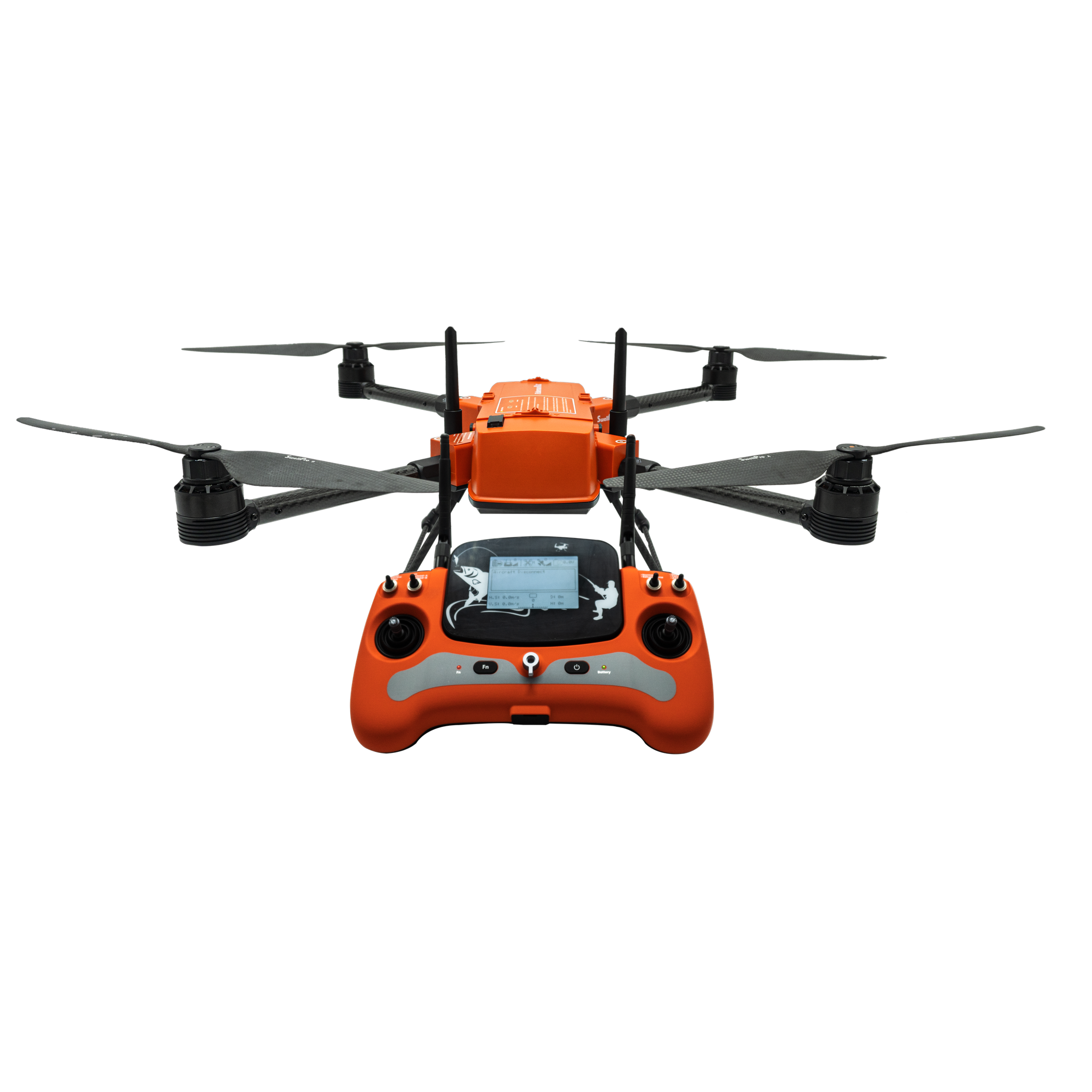

FD2 Standard

Controller

Weight 0.68 kg / 1.49 lb
Waterproof rating IP54
Size 276 x 190 x 74 mm / 11 x 7.5 x 3 in
Wireless band 2.4 GHz
Battery 3000 mAh
Working time 9 hours
Charging time 3 hours
Screen type Single-color text display
Screen size 9.1 cm / 3.6 in

Onboard camera

Not included.

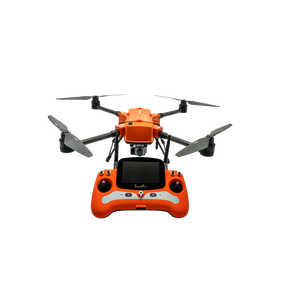

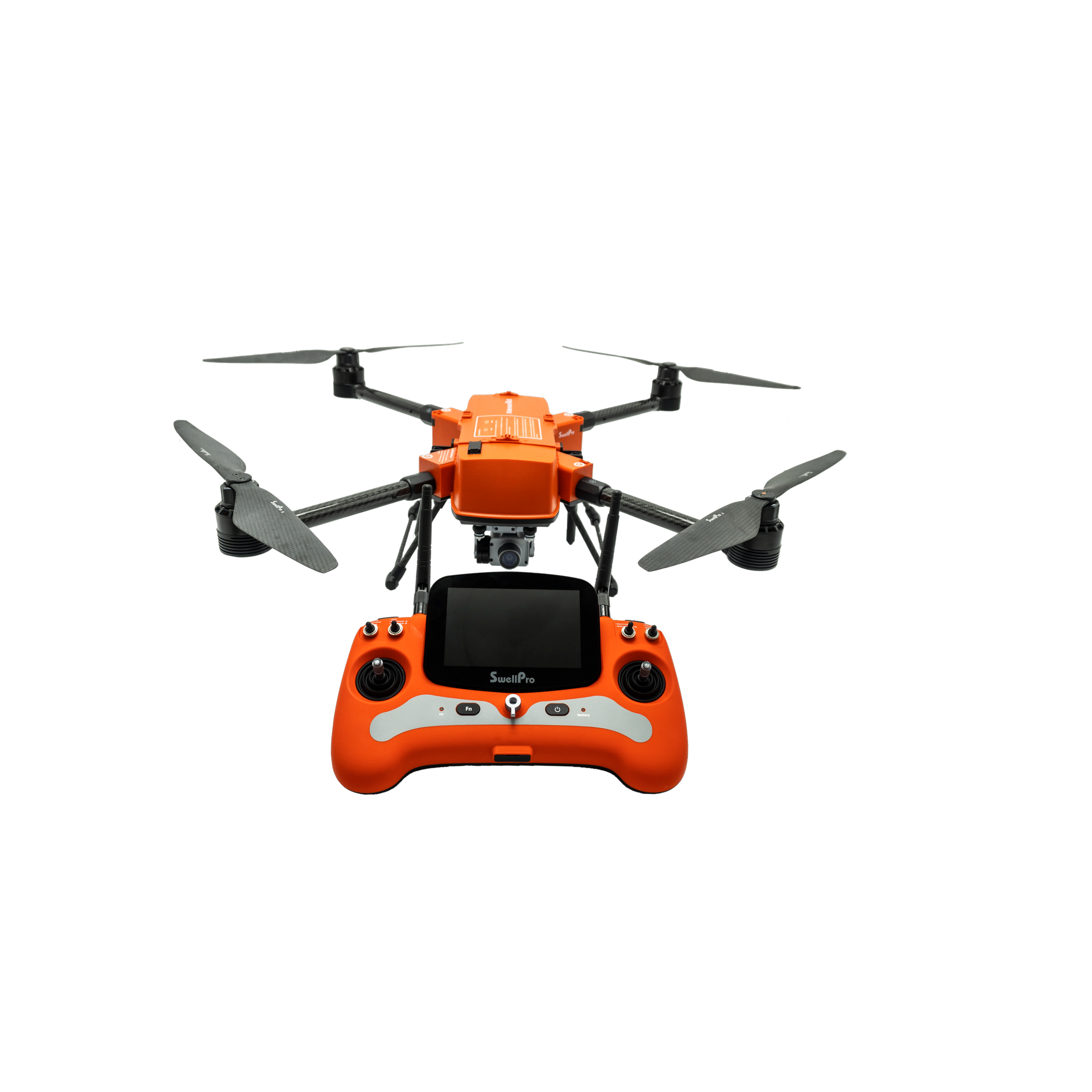

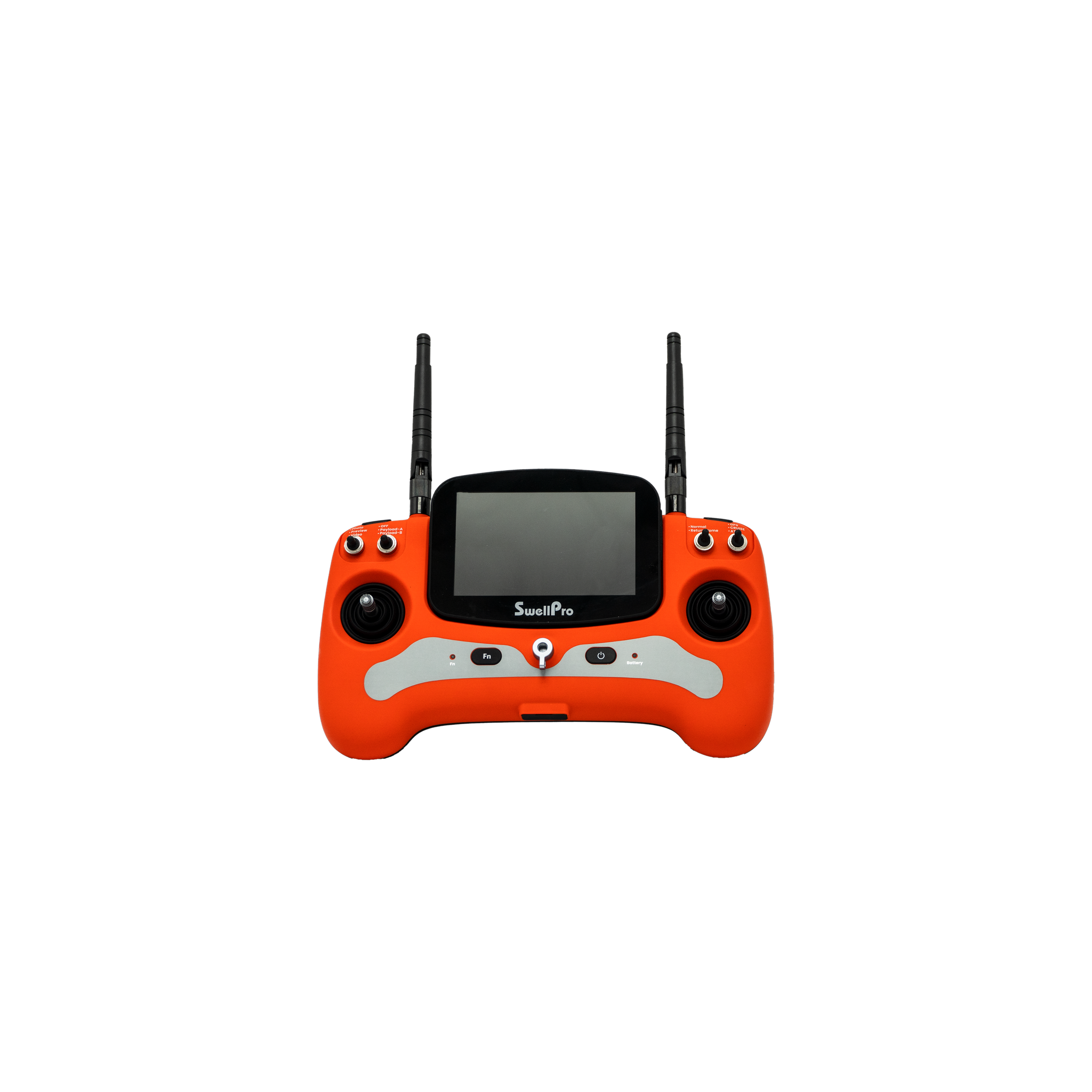

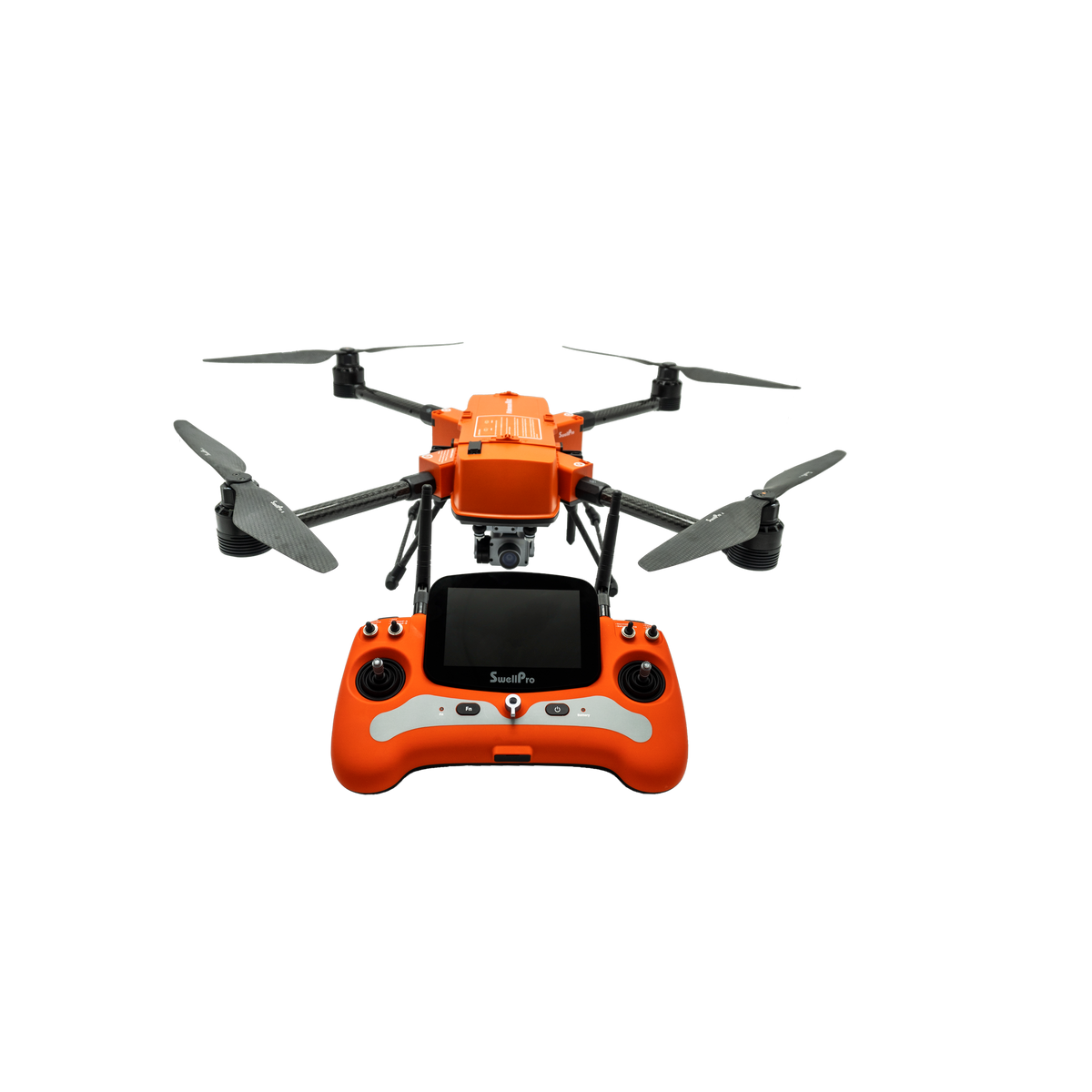

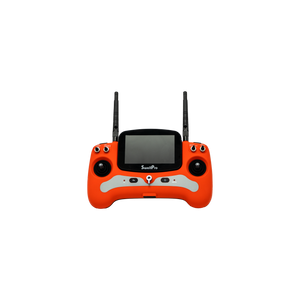

FD2 Advanced

Controller

Weight 0.71 kg / 1.56 lb
Waterproof rating IP54
Size 276 x 190 x 74 mm / 11 x 7.5 x 3 in
Wireless band 2.4 GHz + 5.8 GHz
Battery 3000 mAh
Working time 5 hours
Charging time 3 hours
Screen type Multi-color video display
Screen size 12.7 cm / 5 in

Onboard camera

Video resolution 4K 30fps
Photo resolution 12 MP
Memory card microSD, up to 128GB

Flight Battery

Capacity 8800 mAh
Weight 1.26 kg / 2.8 lb
Charging time 80 mins

What's in the Box

  • Aircraft x 1
  • Remote controller x 1
  • Camera x 1 (Advanced version)
  • Flight battery x 1

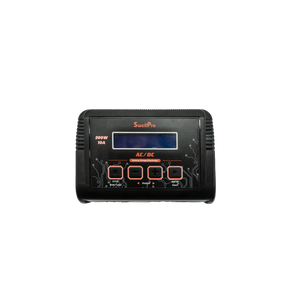

  • Charger x 1

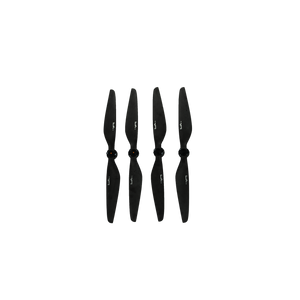

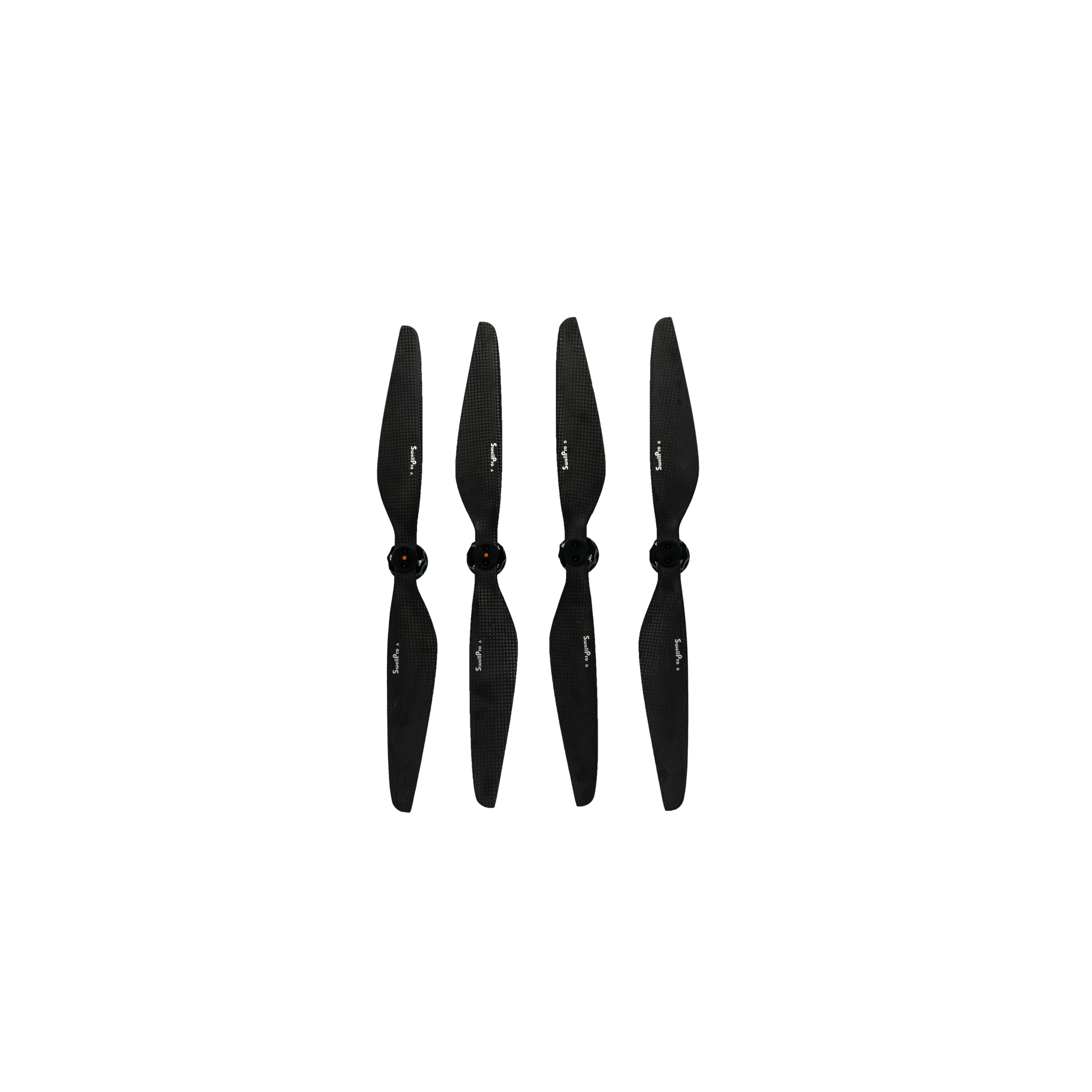

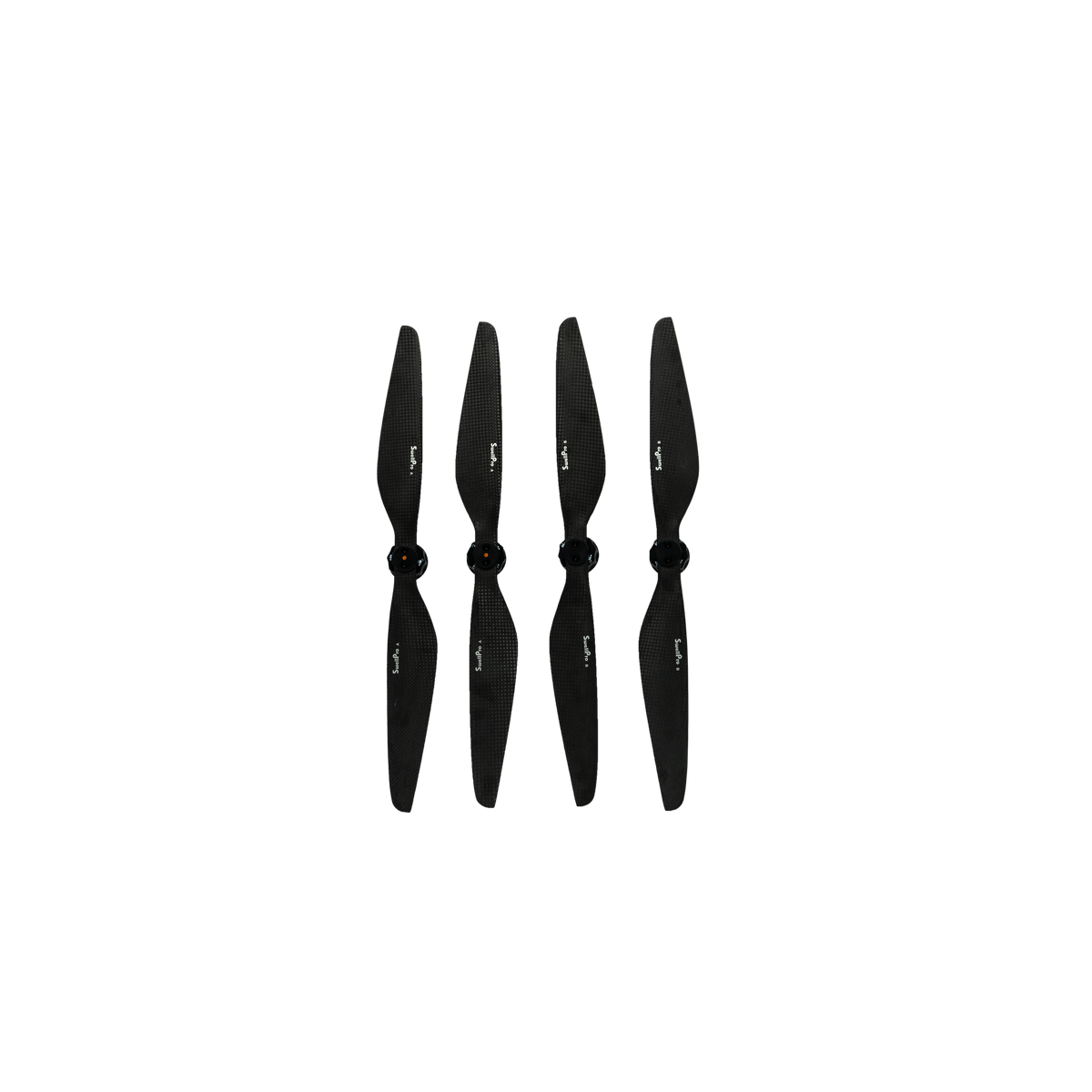

  • Propellers: 1 full set included (2 pairs)

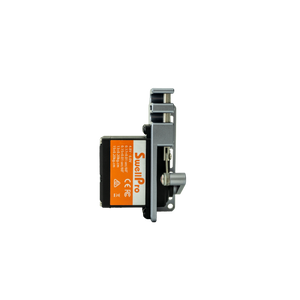

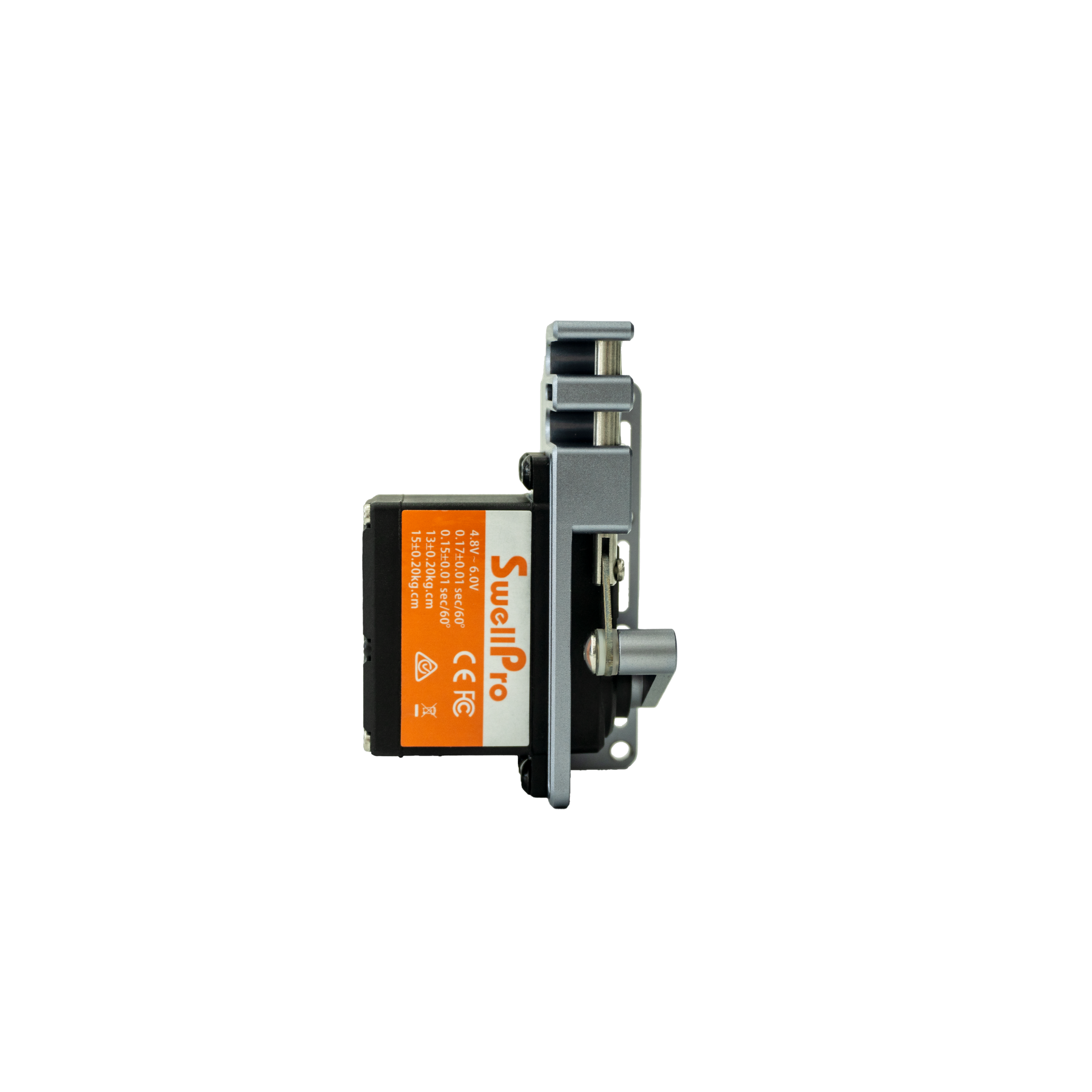

  • Bait release x 1
  • USB-C cable x 1
  • Charging cable x 1
  • Power adapter x 1
  • Phone mount x 1

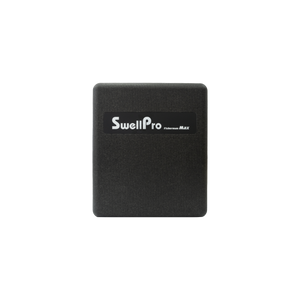

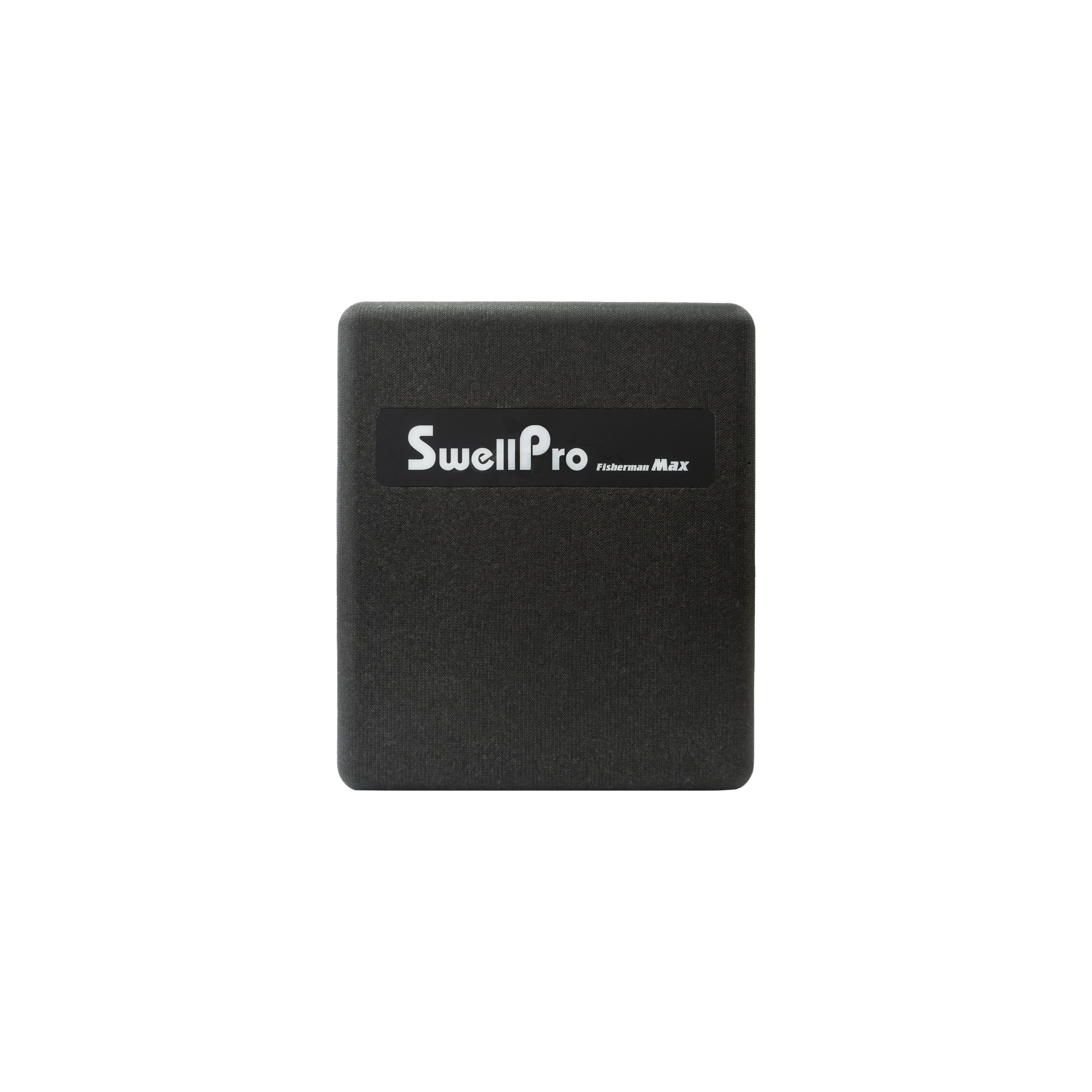

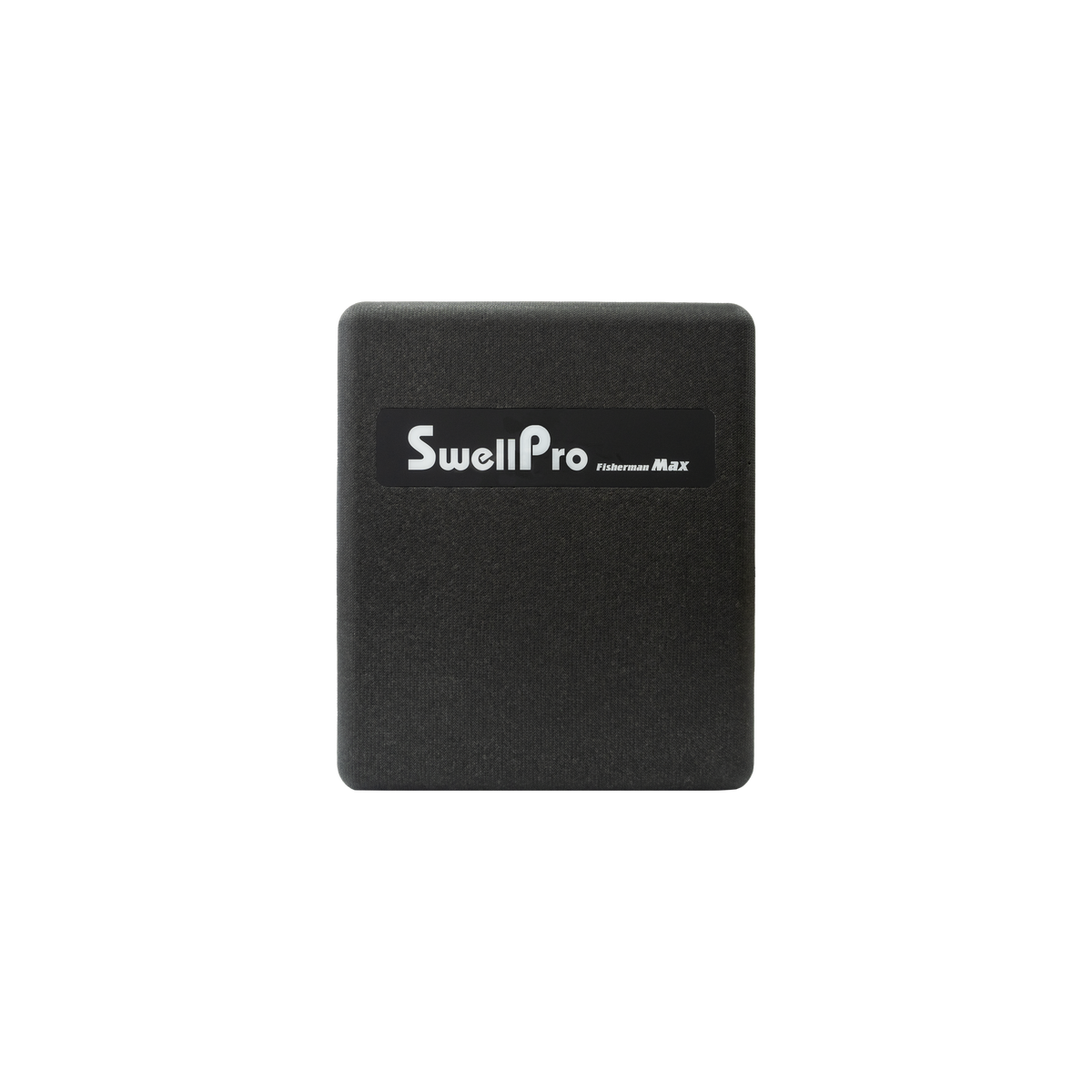

  • Carry case x 1
â–¶Technical Specifications (tap to expand full specs)

Aircraft

Max ascend speed 3 m/s / 7 mph
Max descend speed 2 m/s / 4.5 mph
Max tilt angle 25°

Aircraft — Radio, Motor & Positioning

Satellite positioning system GPS/Galileo
Motor 4114 - 400Kv
ESC 40A
Propellers #1655 carbon fiber
Operation frequency 2.405 - 2.475 GHz | 5.725 - 5.825 GHz
Transmitter power (EIRP) <33 dBm (FCC), <20 dBm (CE) | <33 dBm (FCC), <14 dBm (CE)
Certifications CE / FCC / ROHS / RCM

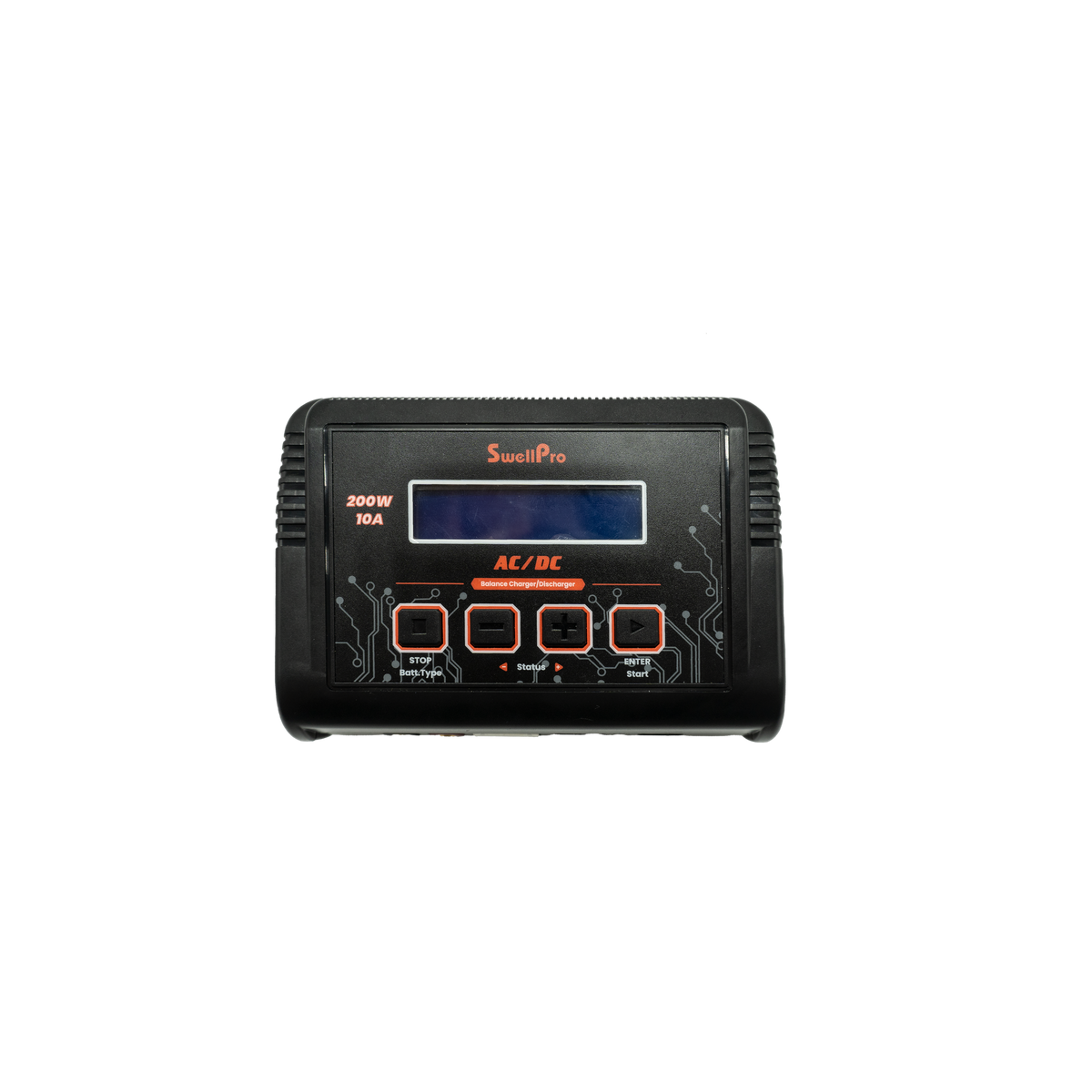

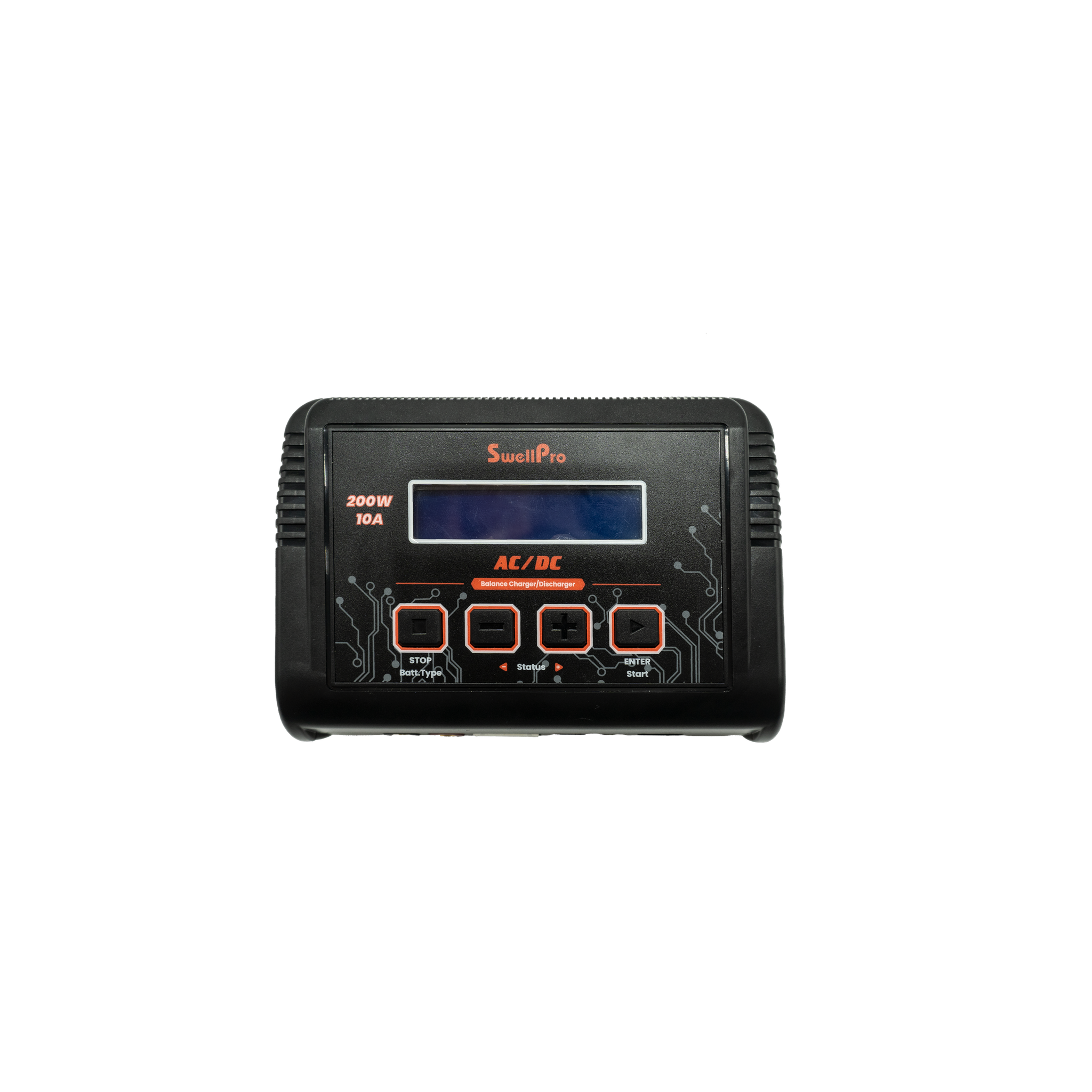

Flight Battery & Charger

Battery voltage 22.2V
Battery type 6S LiPo
Charger output 25.2V
Charger supported battery types 6S LiPo
Charger input 100 - 240V
Charger max power 200W

Standard Remote Controller

Operating frequency 2.405-2.475 GHz
Transmitter power (EIRP) <26 dBm (FCC), <20 dBm (CE)

Advanced Remote Controller

Operating frequency 2.405-2.475 GHz; 5.725-5.825 GHz
Transmitter power (EIRP) <26 dBm (FCC), <20 dBm (CE)
Screen resolution 800 x 480 px
Screen brightness 500 cd/m²

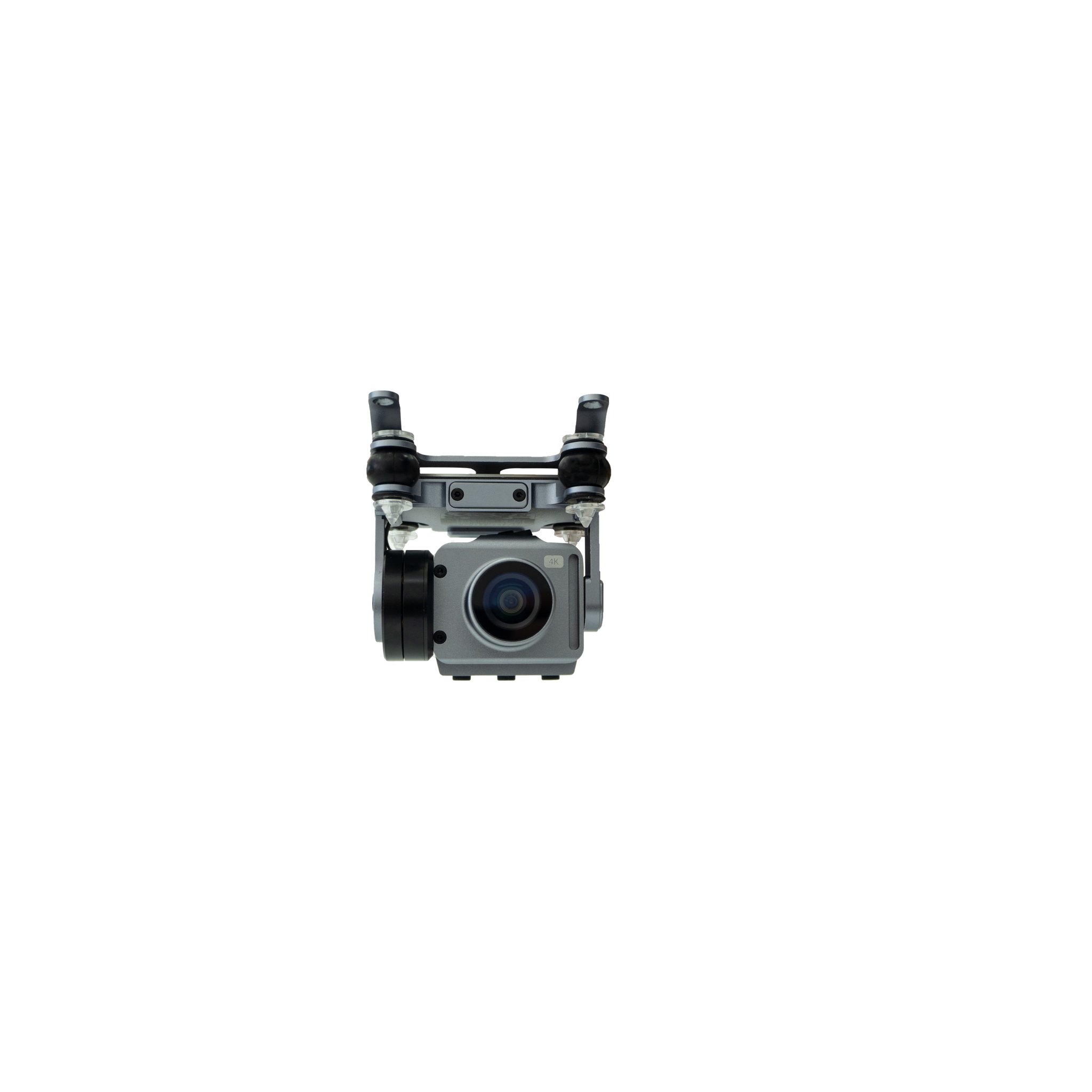

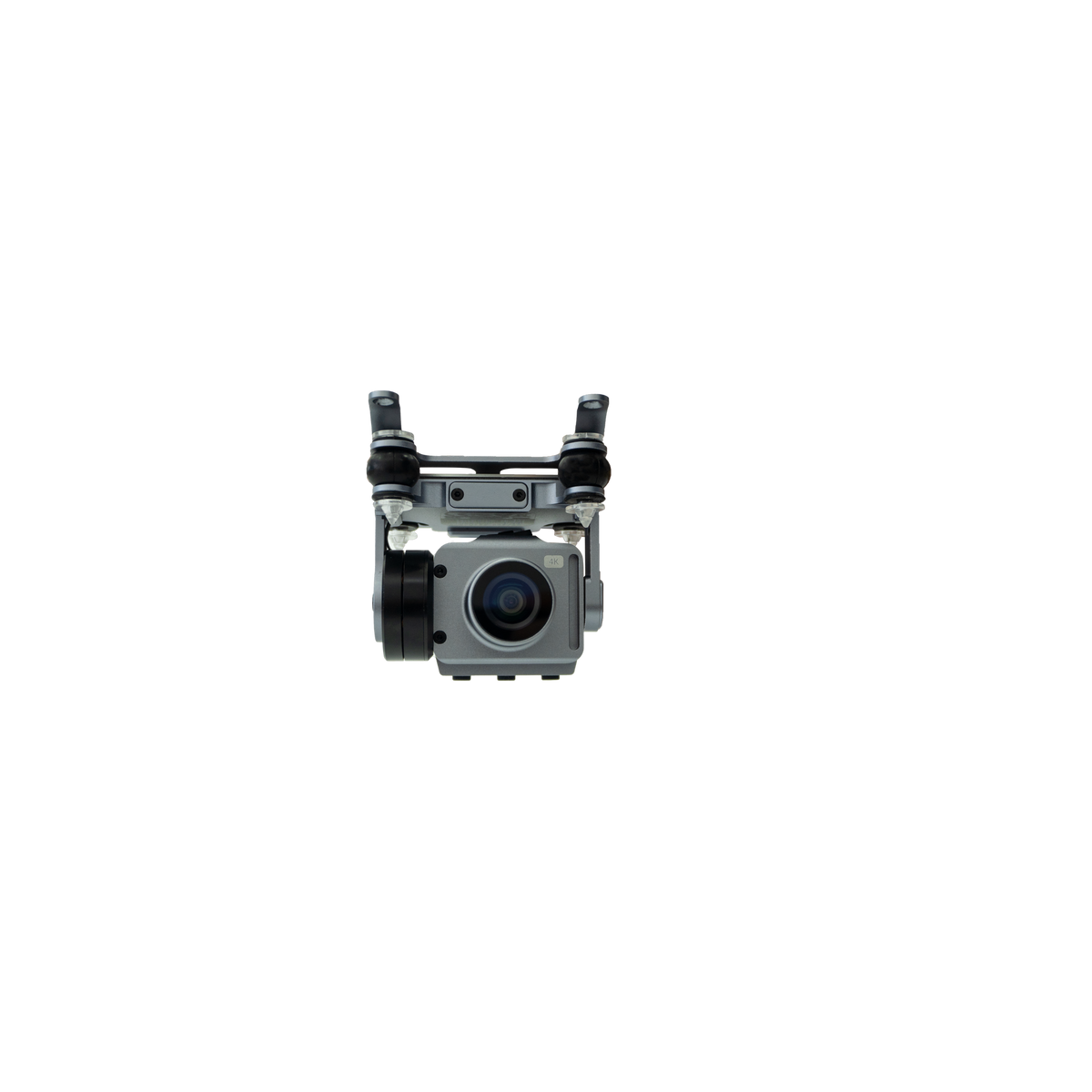

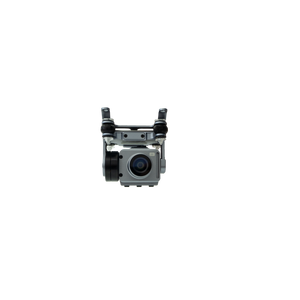

Camera (Advanced version)

Image sensor SONY IMX377
Lens F4.5, 3mm f/2.65, FOV 92.6°
Video resolution 4K 30fps | 2.7K 60fps | 1080p 120/60/30fps | 720p 240/120/60fps
Photo resolution 4000 x 3000 (4:3), 3840 x 2160 (16:9)
Stabilization 1-axis (tilt), -90° to 0°
Memory card microSD, up to 128GB, Class 10 or UHS-1 recommended
