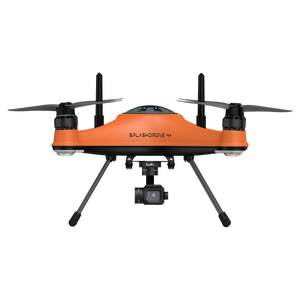

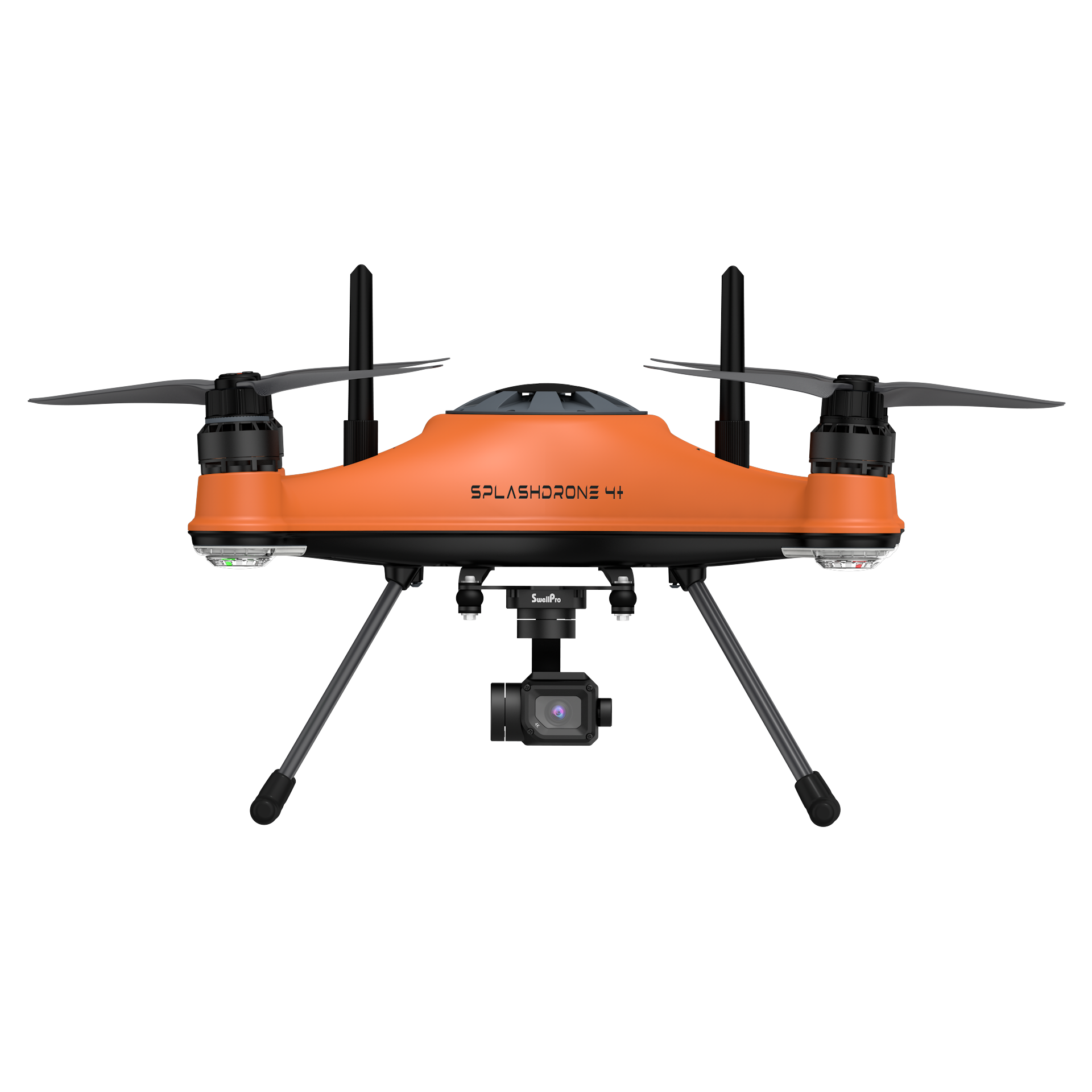

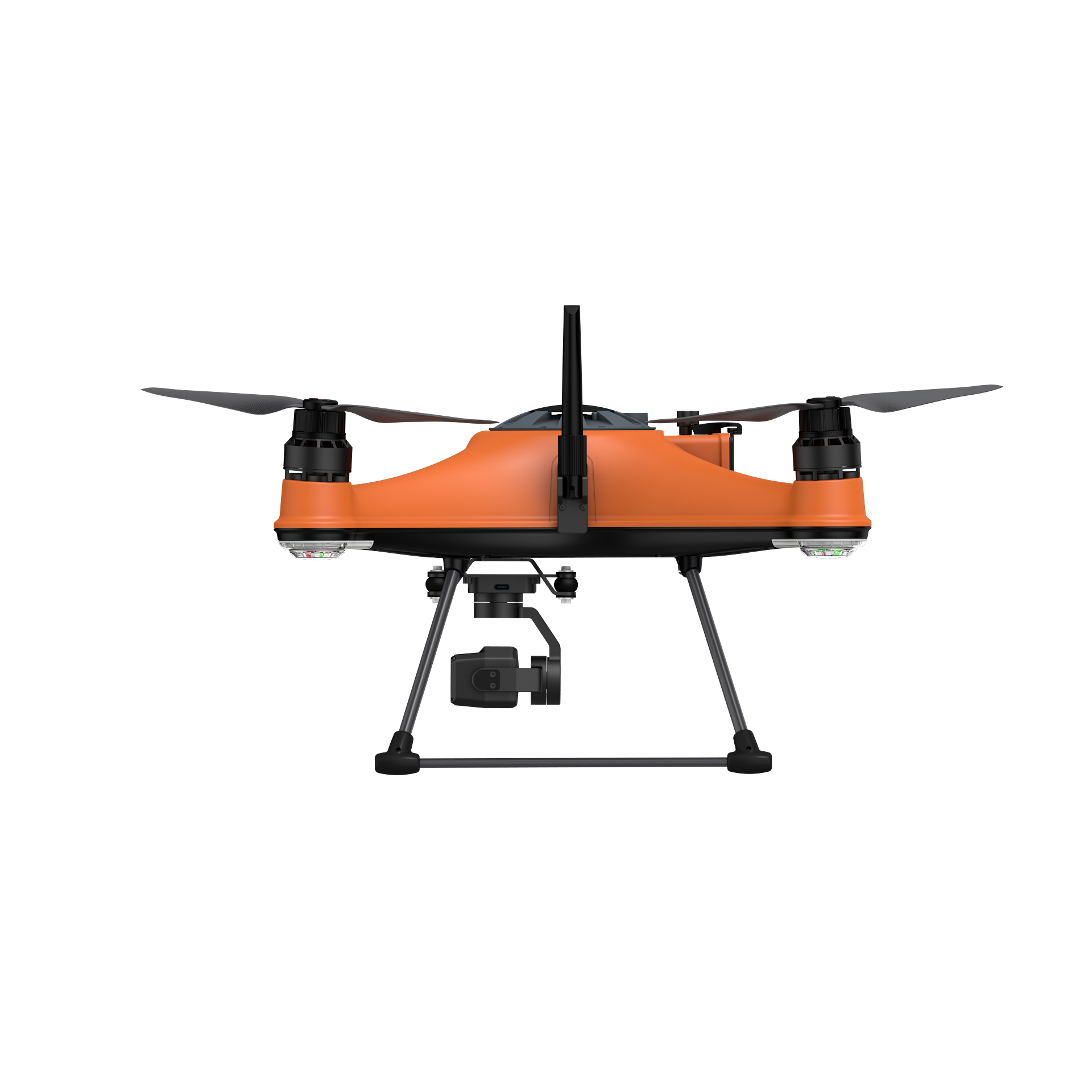

SwellPro SplashDrone 4+ front view

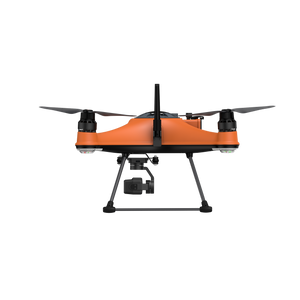

SwellPro SplashDrone 4+ front view alternate

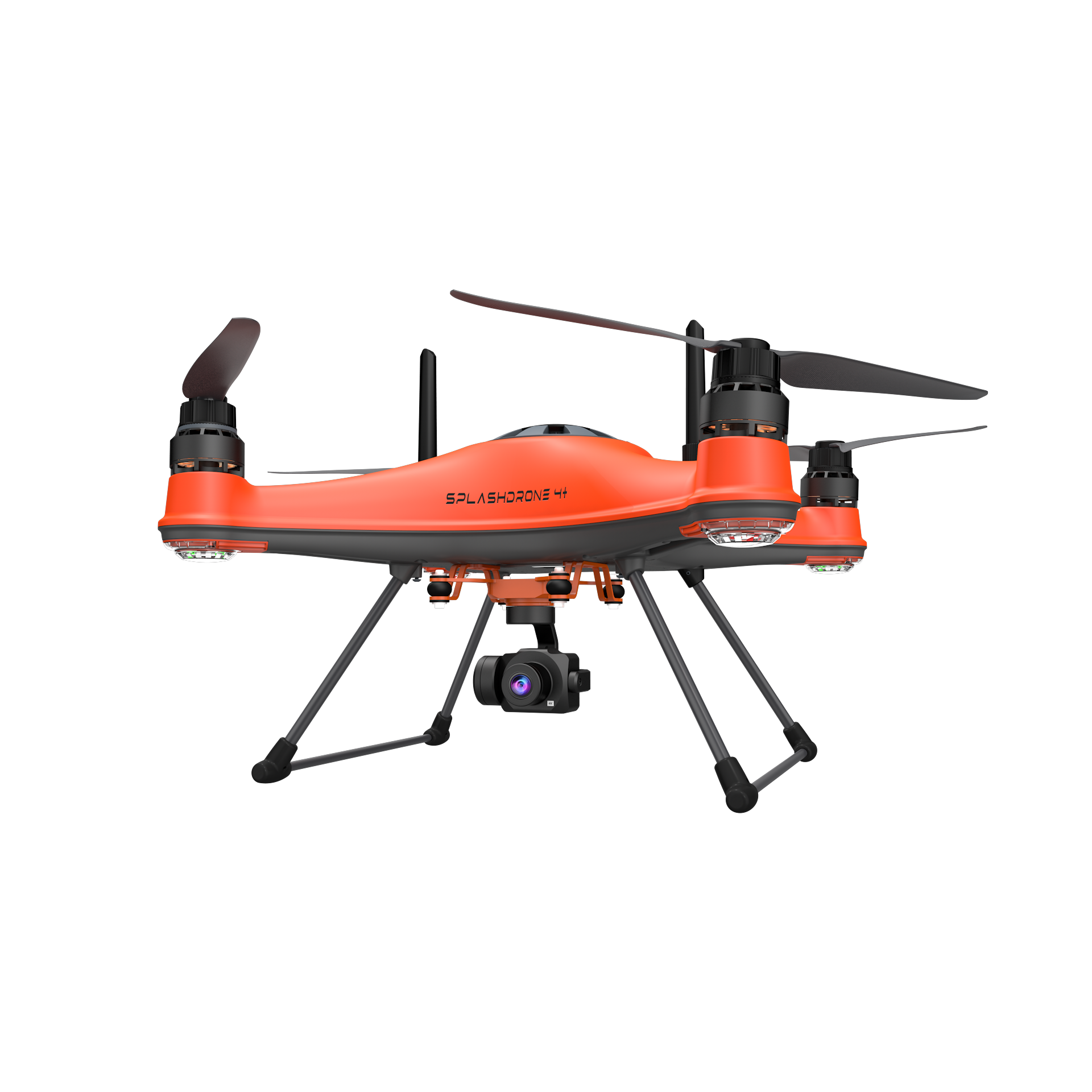

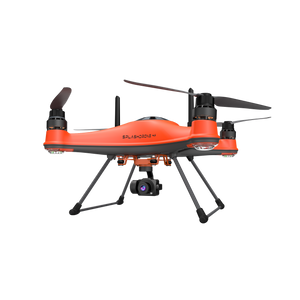

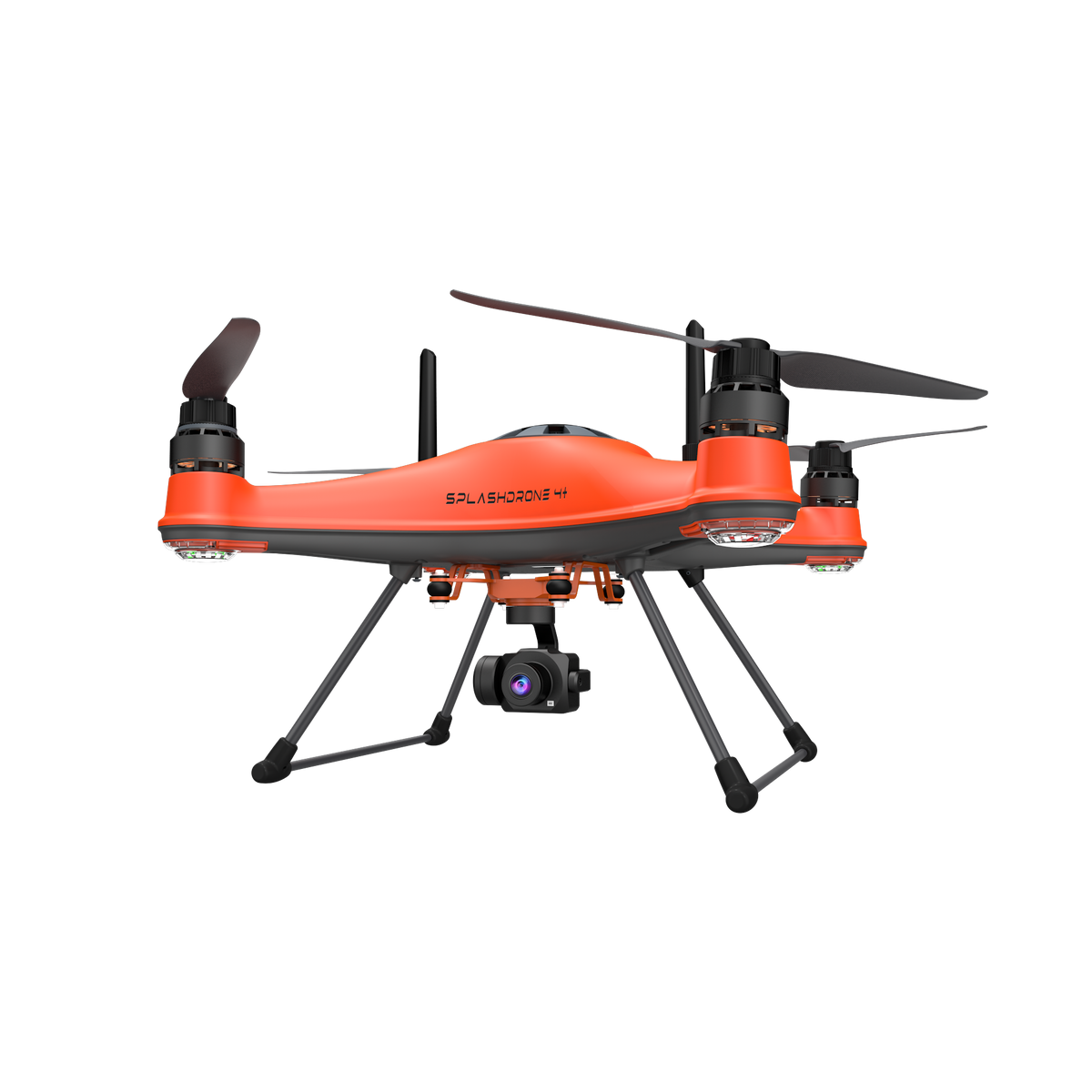

SwellPro SplashDrone 4+ three-quarter view

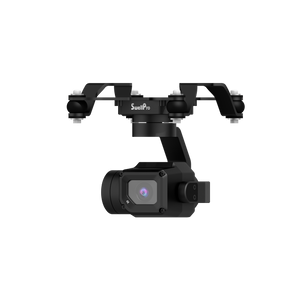

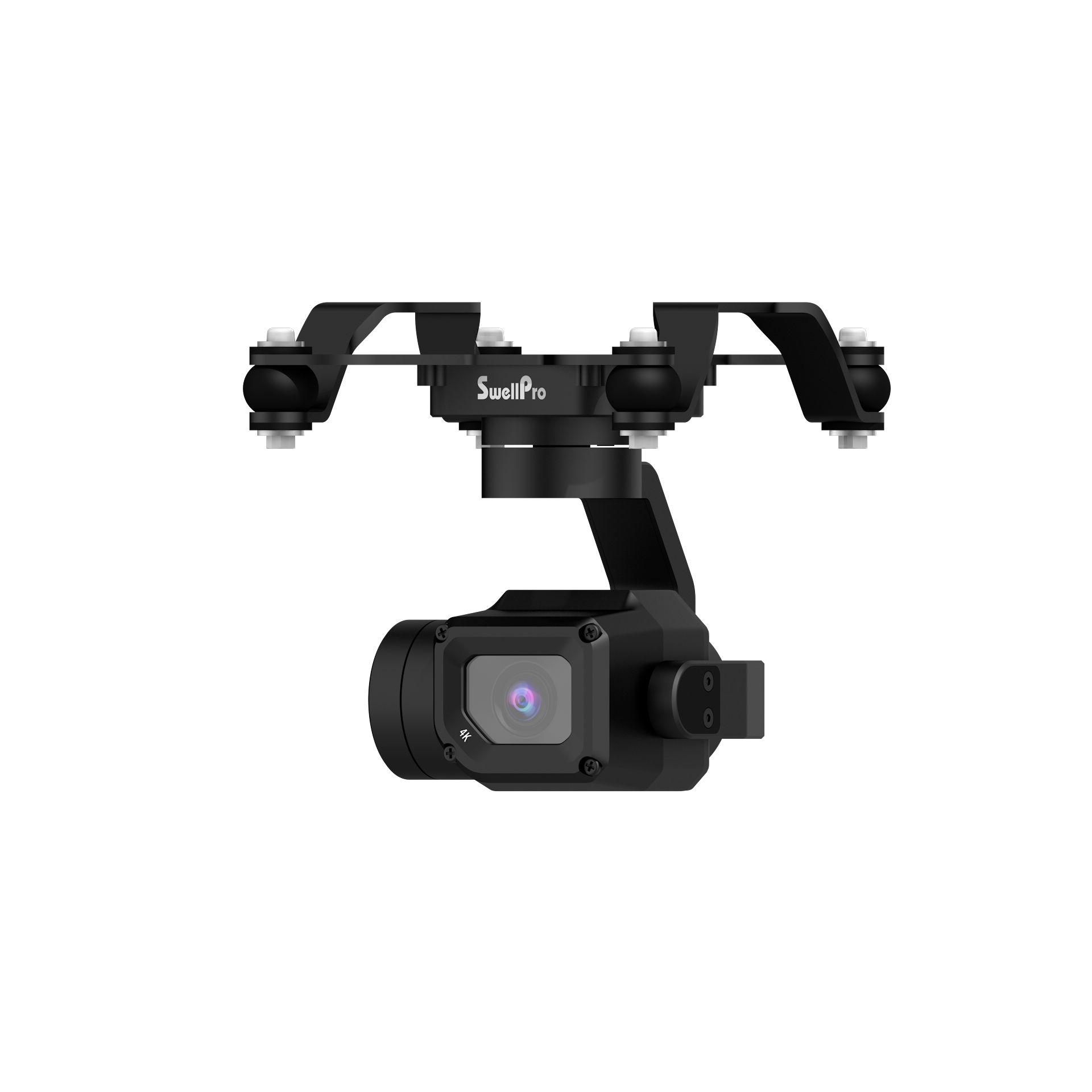

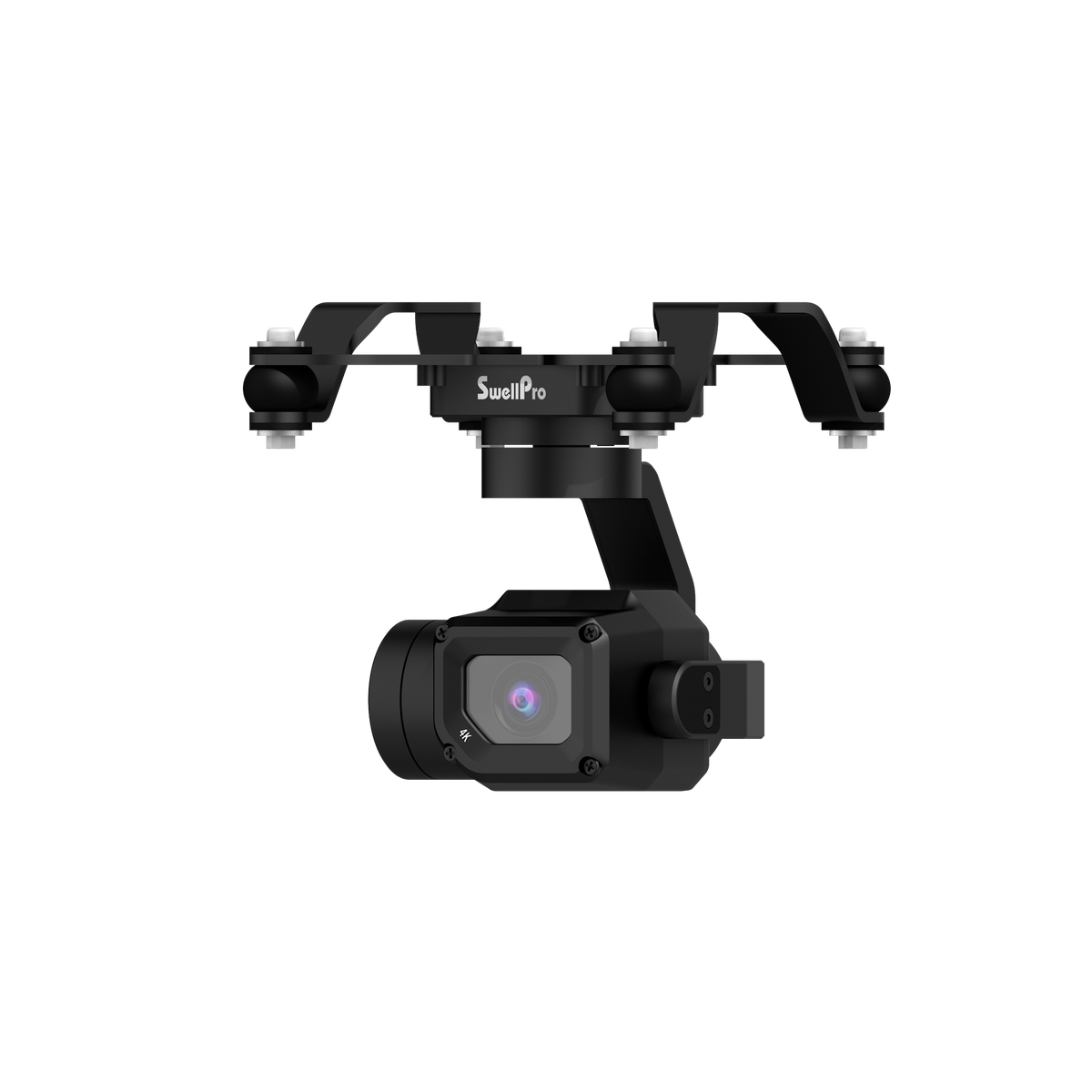

SwellPro SplashDrone 4+ G03H 4K camera module

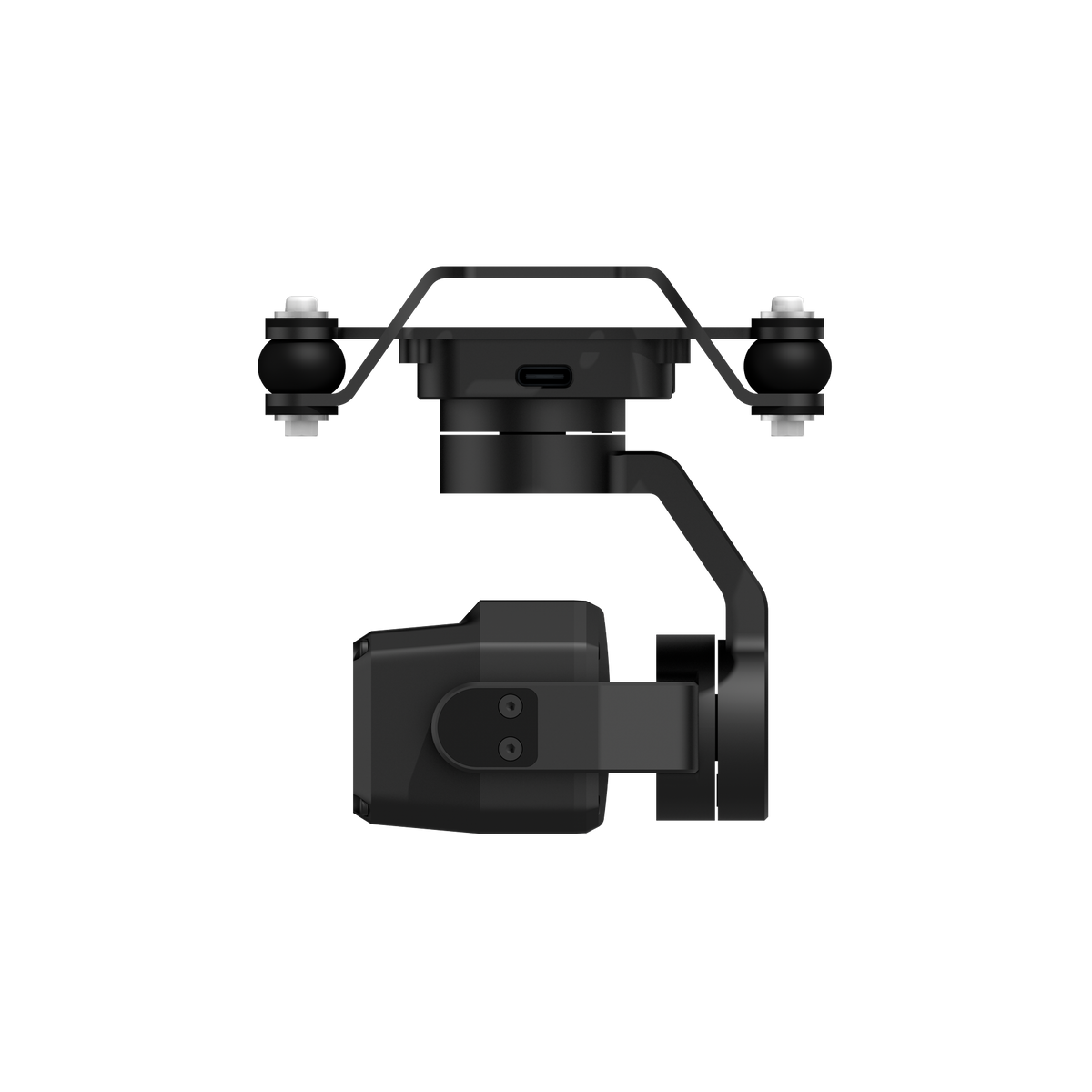

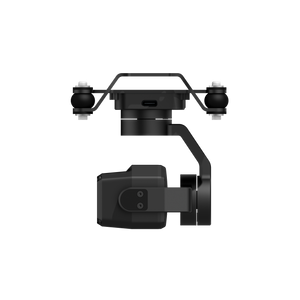

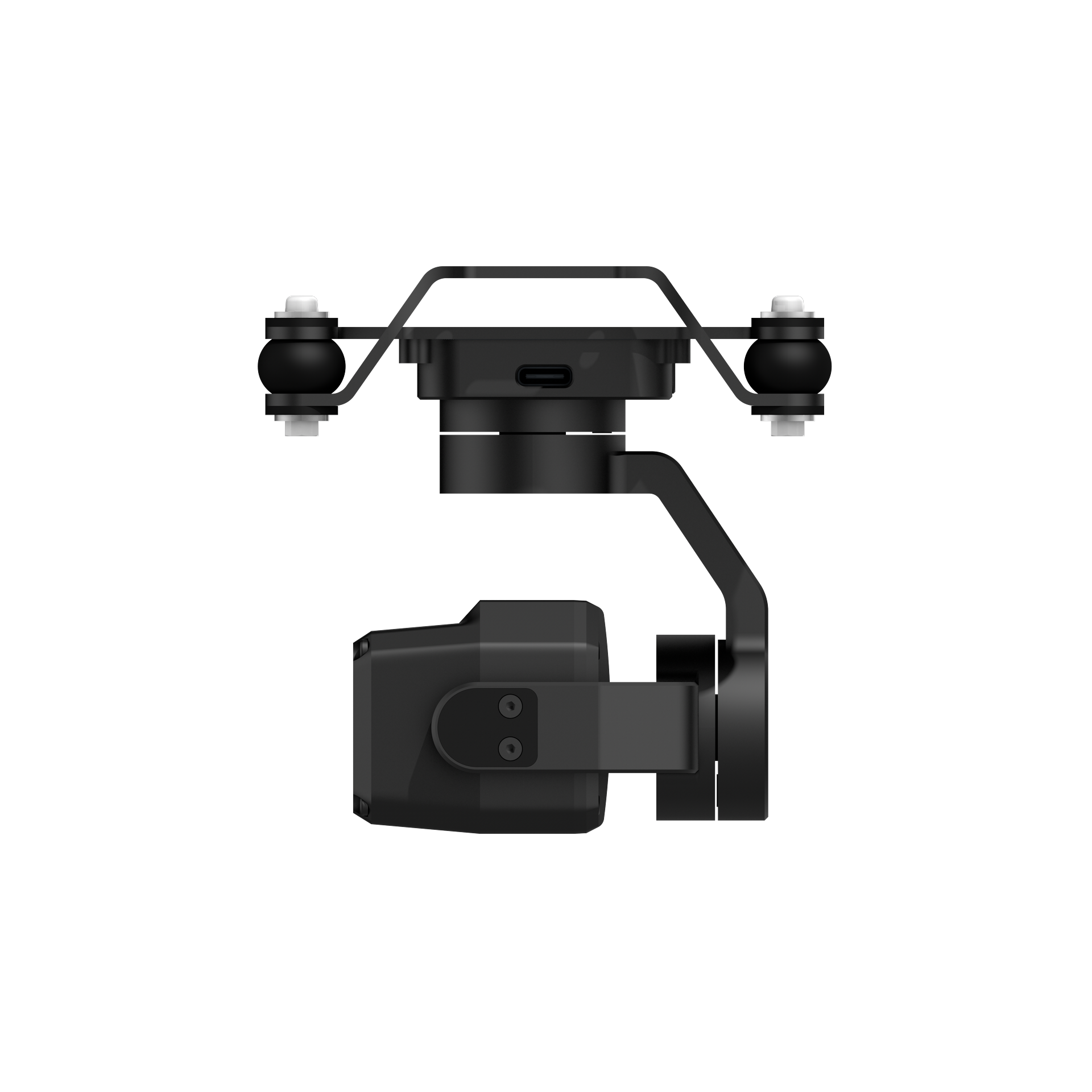

SwellPro SplashDrone 4+ G03H camera module rear view

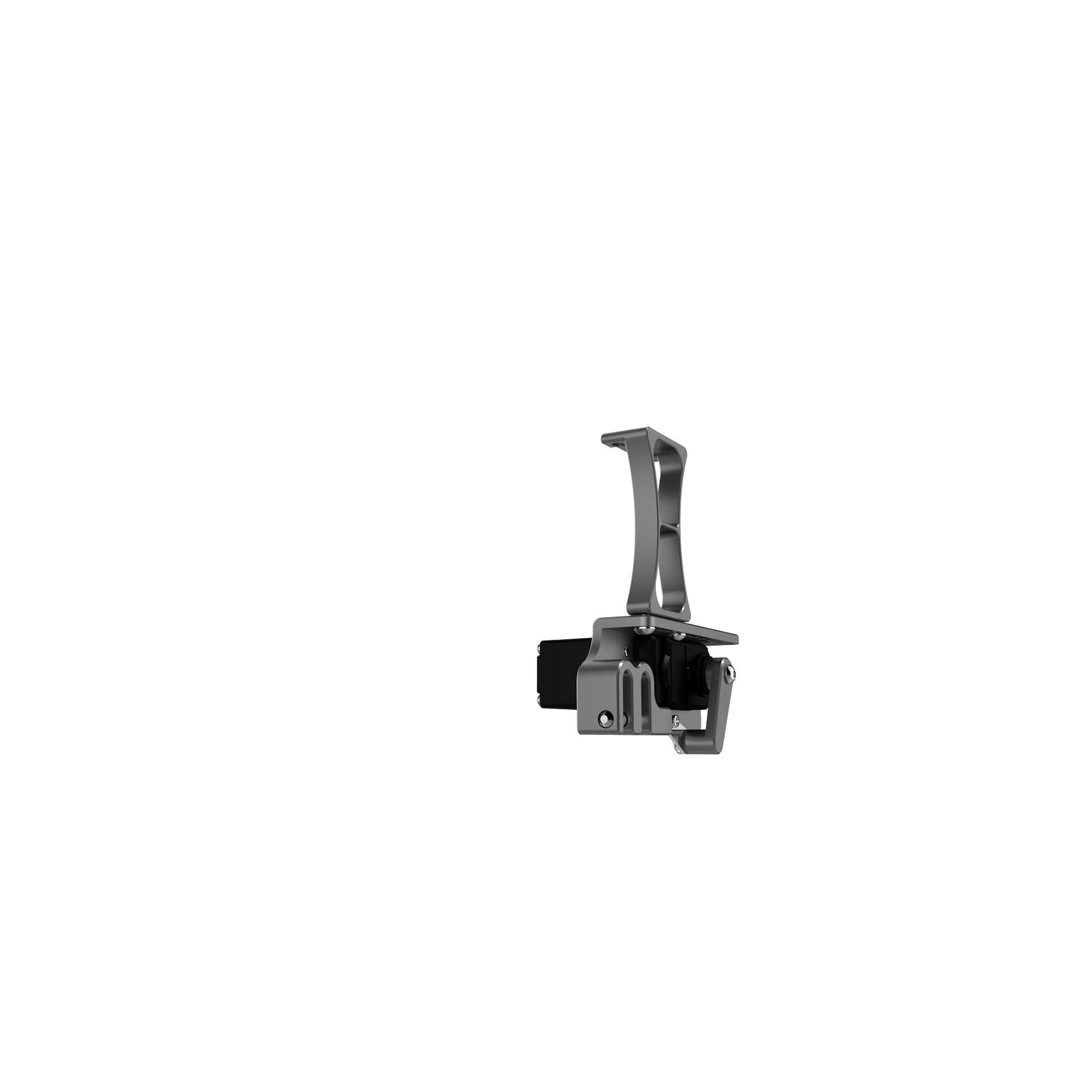

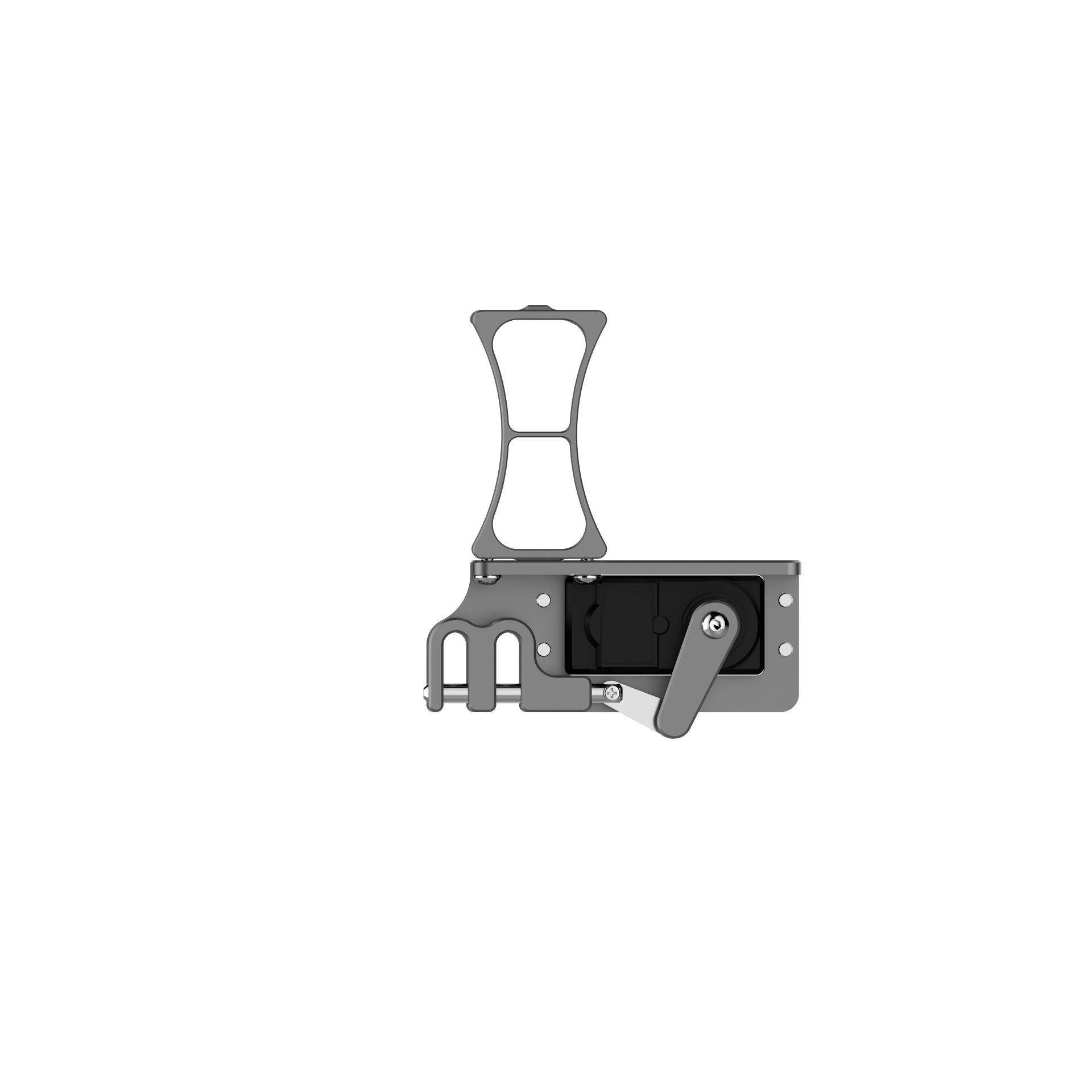

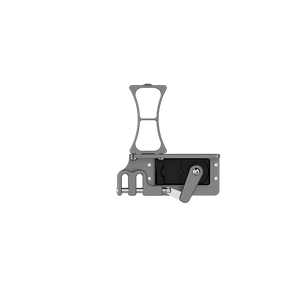

SwellPro SplashDrone 4+ dual payload release
SwellPro SplashDrone 4+ dual payload release alternate angle

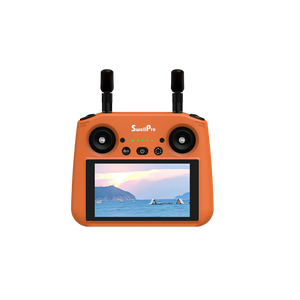

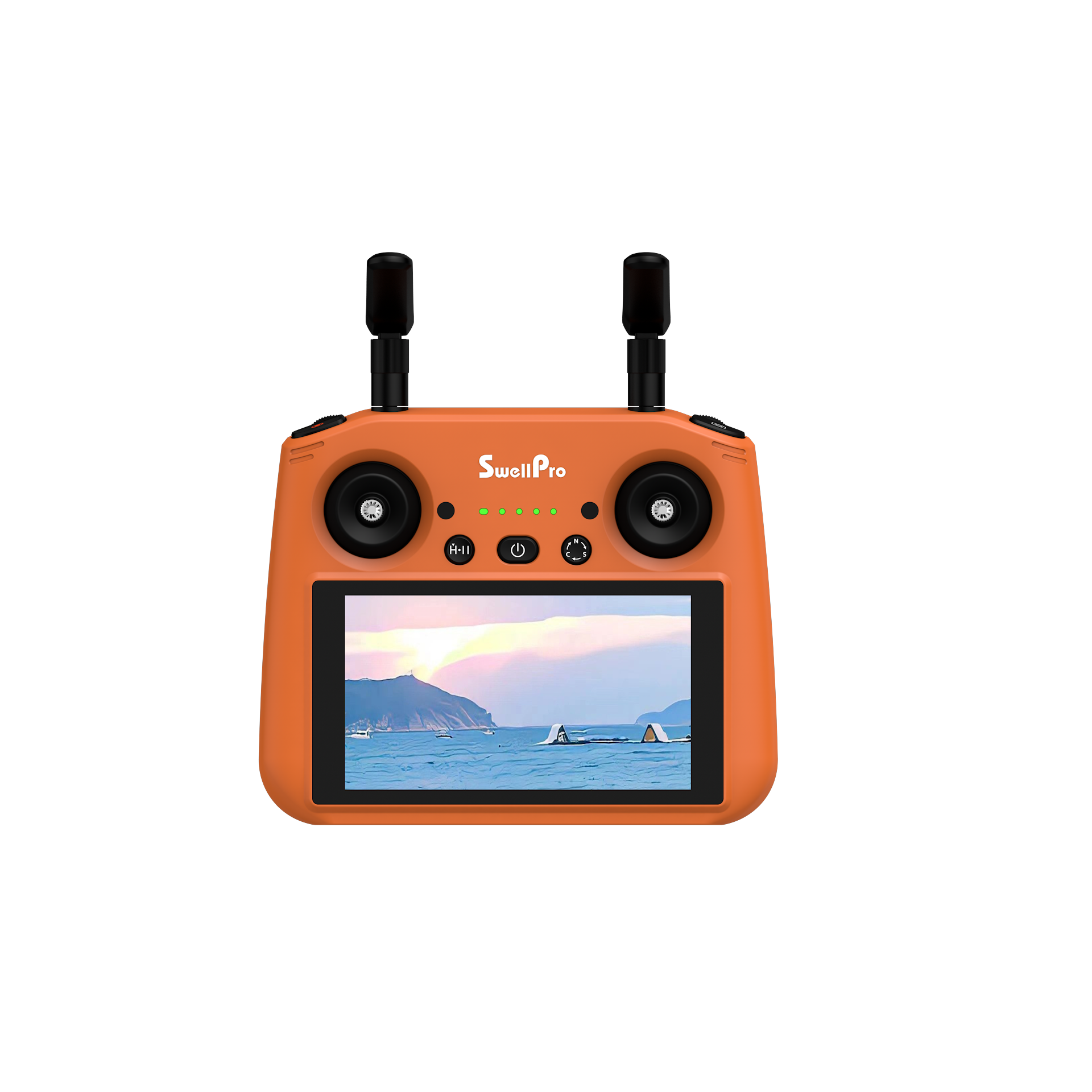

SwellPro SplashDrone 4+ R03 controller front view

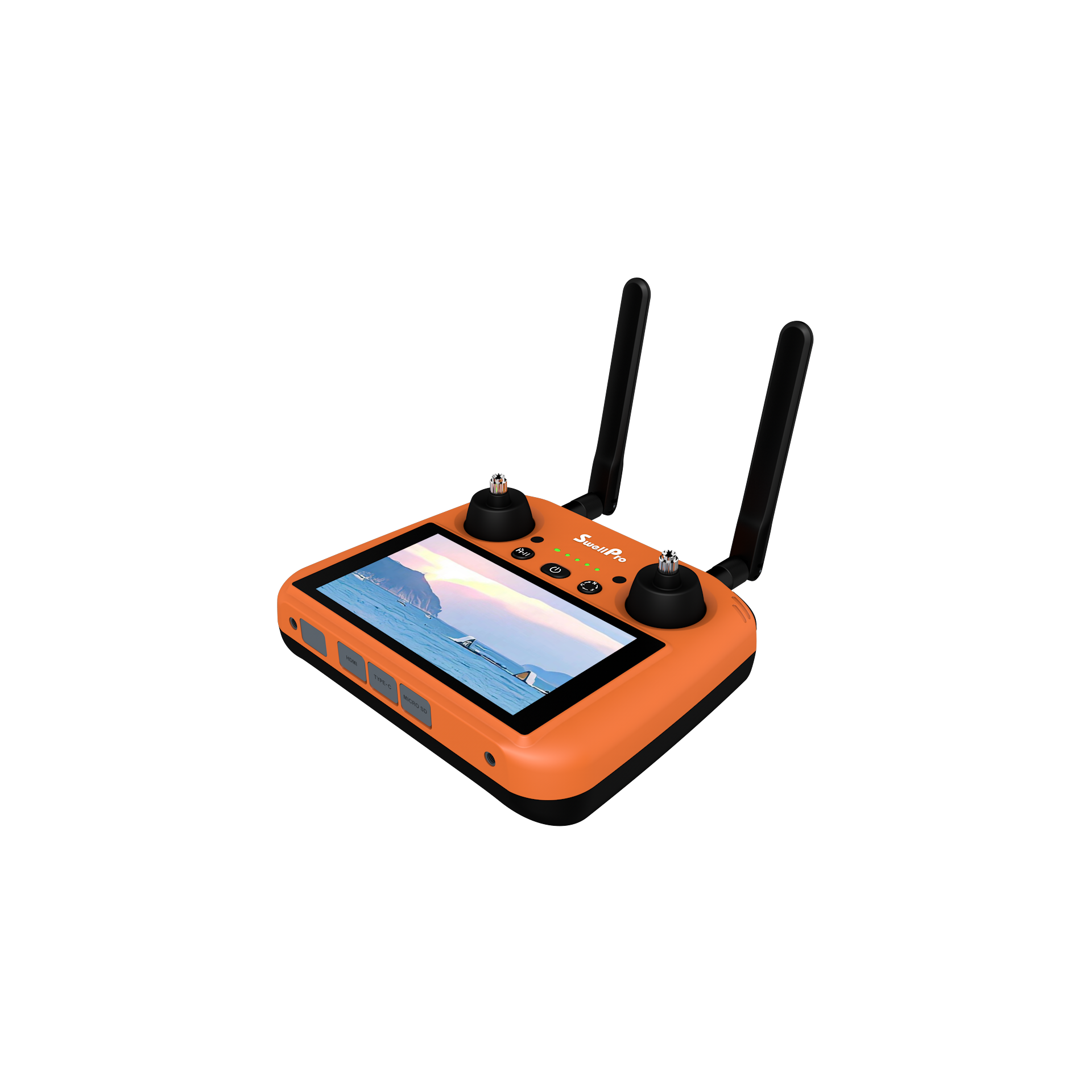

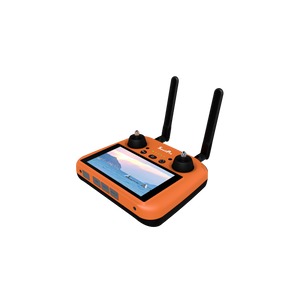

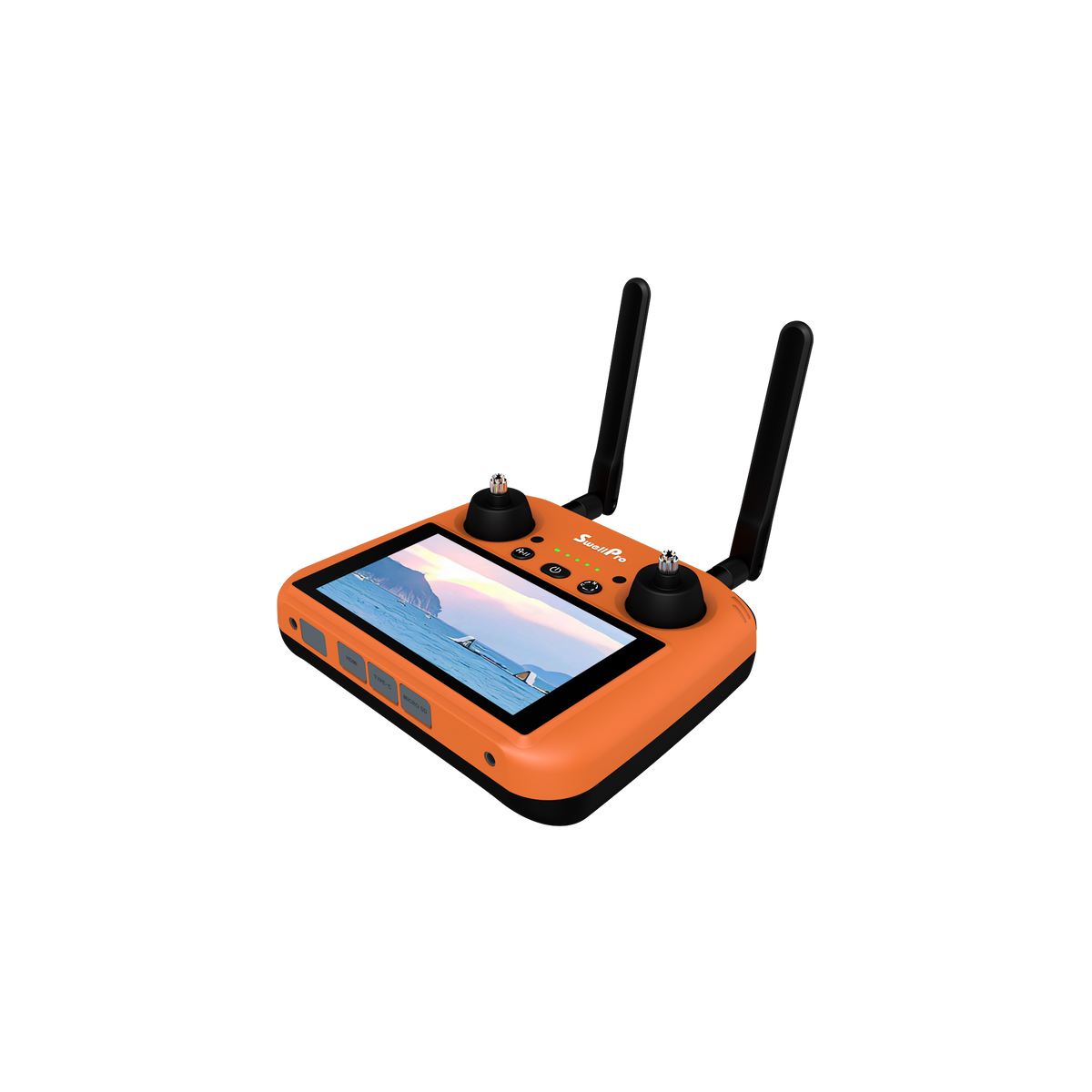

SwellPro SplashDrone 4+ R03 controller angled view

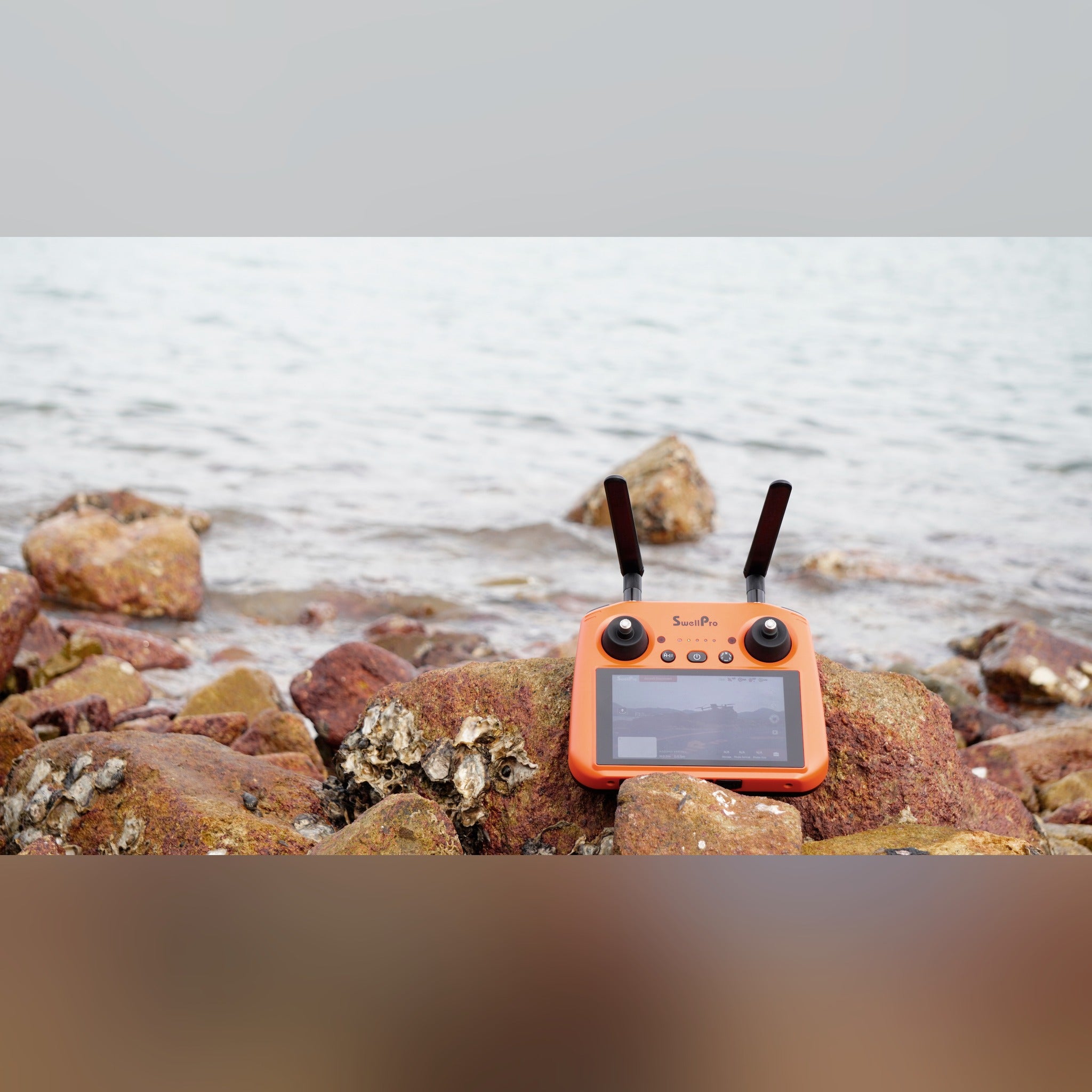

SwellPro SplashDrone 4+ R03 controller on rocks with live feed

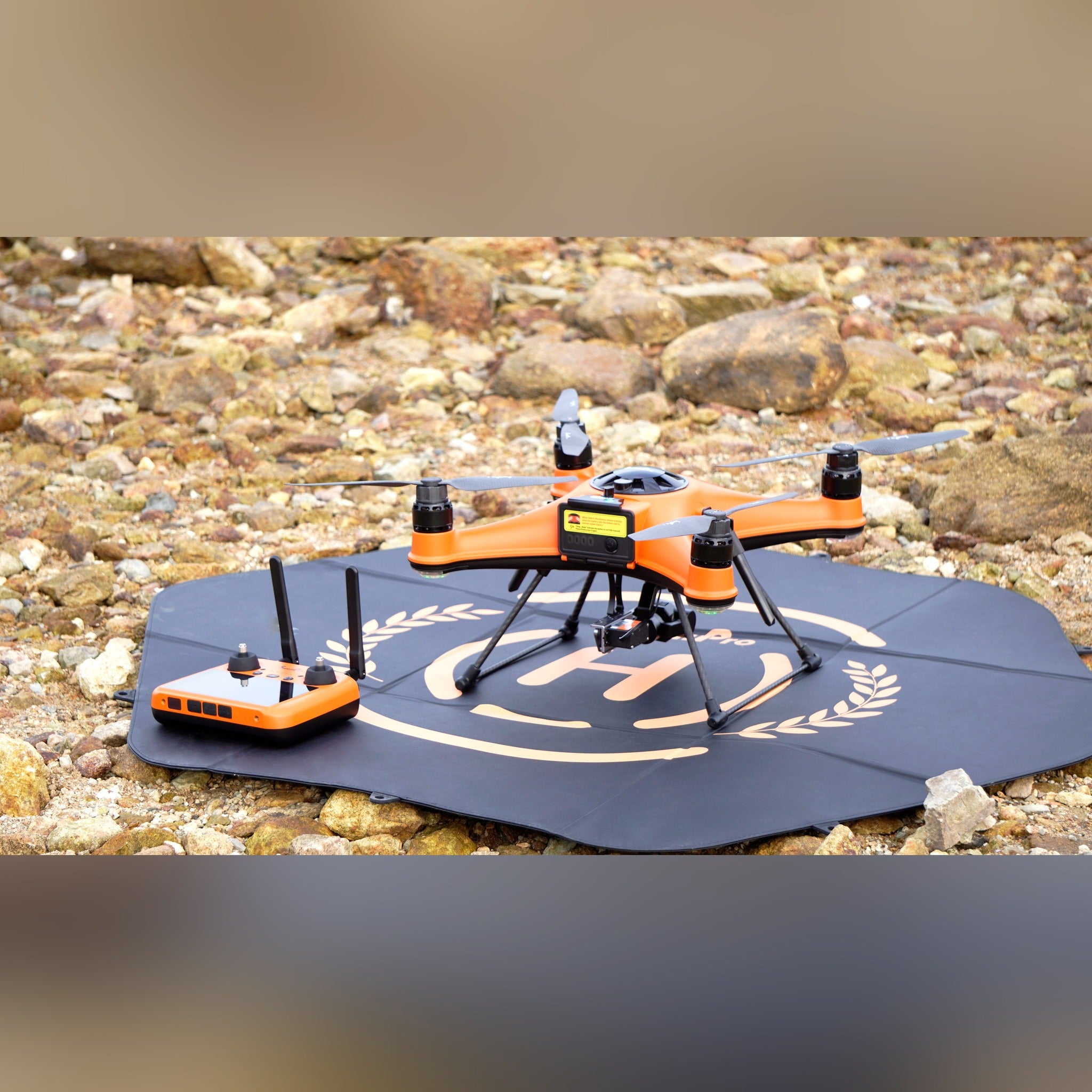

SwellPro SplashDrone 4+ drone and controller together

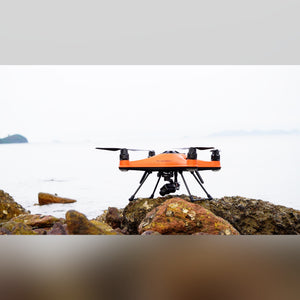

SwellPro SplashDrone 4+ hovering over rocks with water spray

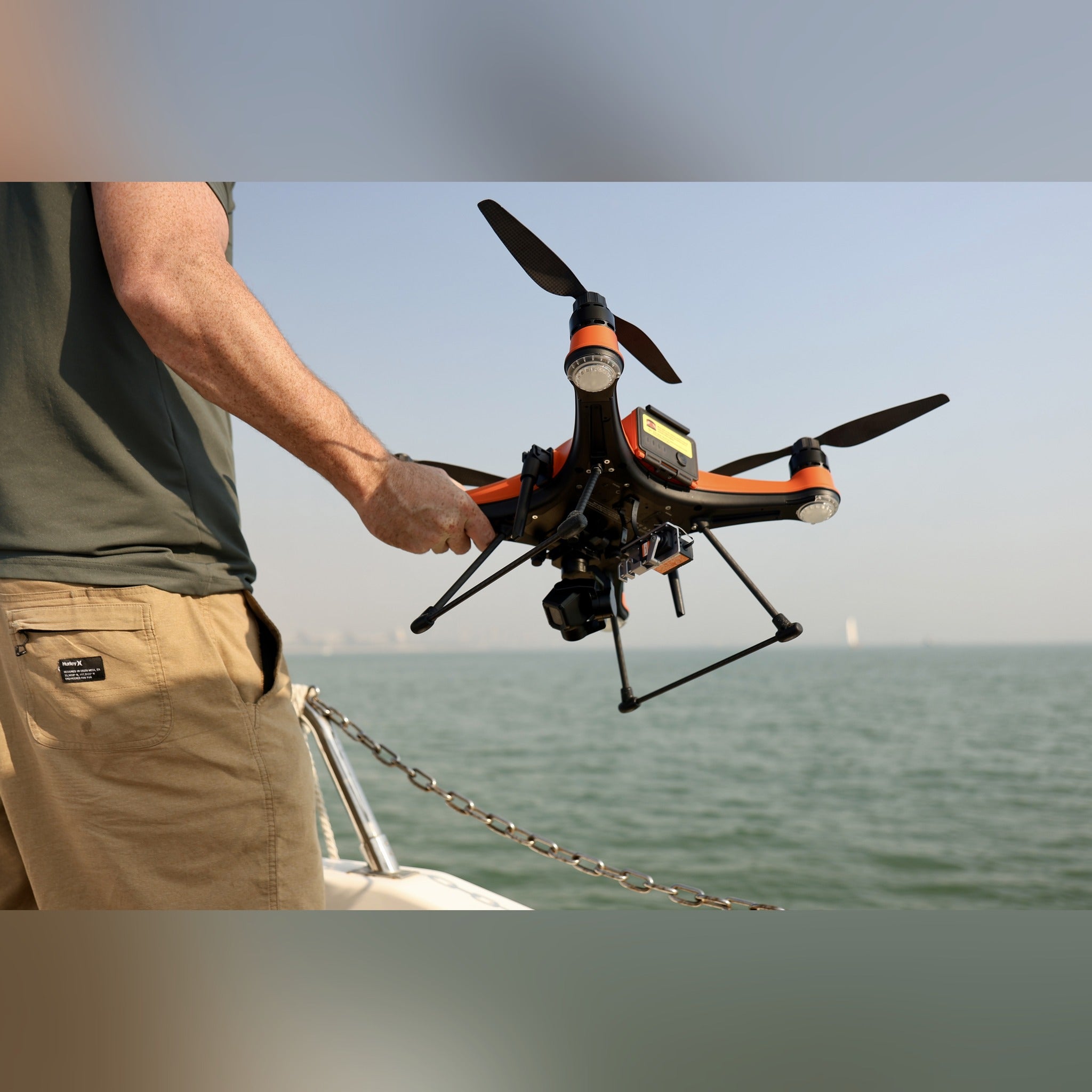

SwellPro SplashDrone 4+ hand-held aboard a boat

SwellPro SplashDrone 4+

$3,823.99
Fly More Combo

The Almighty Waterproof Drone. SplashDrone 4+ is SwellPro's all-digital, all-waterproof, multi-purpose flight platform — equally at home shooting aerial video, dropping bait, running search & rescue, or handling maritime inspection work. IP67-rated airframe (dust-tight, and rated for accidental submersion to 1 m / 3.3 ft for up to 30 minutes), extended 7 km (4.3 mi) transmission range, and a 48MP 4K camera.

Key Features

  • IP67 waterproof airframe with self-floating, self-righting PowerFlip design
  • Up to 7 km (4.3 mi) max flight & live video range
  • 48MP 4K60fps camera (G03H) with 8x digital zoom
  • Up to 2 kg / 4.4 lb payload capacity
  • Up to 29 minutes of flight time per battery (no wind, no load)
  • All-in-one waterproof smart touchscreen controller
  • Automatic Return-to-Boat & dynamic GPS tracking
  • 45-second no-calibration setup

Aircraft

Waterproof rating IP67
Weight (incl. battery & propellers) 2.43 kg / 5.4 lb
Max take-off weight 4.18 kg / 9.2 lb
Size 372.2 x 372.2 x 230.6 mm / 14.7 x 14.7 x 9.1 in
Max flight speed Sport 18 m/s / 40 mph; Normal 10 m/s / 22 mph; Cine 3 m/s / 6.7 mph
Max flight altitude 120 m / 393 ft
Max flight & live video range 7.0 km / 4.3 mi
Max payload capacity 2 kg / 4.4 lb
Flight time Up to 29 mins per battery (no wind & no load)
Max wind speed resistance 17 m/s / 38 mph / 33 knots
Hovering precision ±0.5 m / ±1.6 ft

Remote Controller

Waterproof rating IP67, self-floating
Screen 14 cm / 5.5 in touchscreen, 1080p
Operating frequency 5.1 / 5.8 GHz
Live video feed 720p @ 30fps
Battery 3000 mAh
Working time 2.5 hours
Charging time 2.5 hours
Ports HDMI, USB-C

Camera (G03H)

Waterproof rating IP67
Weight 0.25 kg / 0.55 lb
Photo resolution 48 MP
Video resolution 4K 60fps
Zoom 8x digital

Flight Battery (Intelligent Battery IB4+)

Nominal capacity 4500 mAh
Weight 0.82 kg / 1.8 lb
Charging time 120 mins

What's in the Box

  • Aircraft x 1
  • Remote controller x 1
  • Camera (G03H) x 1
  • Flight battery x 1
  • Charger x 1
  • Propellers: 1 full set included (2 pairs)
  • USB-C cable x 1
  • Charging cable x 1
  • Power adapter x 1
  • Carry case x 1
Technical Specifications (tap to expand full specs)

Aircraft

Axis diameter 450 mm / 17.7 in
Max ascend speed 3 m/s / 6.7 mph
Max descend speed 2 m/s / 4.5 mph
Max tilt angle 30°

Aircraft Radio & Positioning

Operating frequency 5180 - 5240 MHz (region-dependent); 5745 - 5875 MHz
Transmitter power (EIRP) 5.1 GHz: < 23 dBm (CE); 5.8 GHz: < 33 dBm (FCC), < 30 dBm (SRRC), < 14 dBm (CE)
Motor #3510 - 740Kv (special coated)
ESC 20A
Propellers #1242 carbon fiber, quick-release
Satellite positioning system GPS + Galileo + BeiDou
Working temperature -10°C ~ 60°C / 14°F ~ 140°F

Flight Battery & Charger

Voltage 25.2V
Battery type Intelligent 6S
Watt hours 99.9 Wh
Working temperature -10°C ~ 60°C / 14°F ~ 140°F (discharge); 0°C ~ 45°C / 32°F ~ 113°F (charge)
Max charging current 8A
Charger output 25.2V, 5.9A
Charger input 220V, 50/60Hz
Charger rated power 150W

Remote Controller

Battery type 2S
Power input 5V/3A, USB-C
HDMI port 1080p video output to an external monitor
USB-C port Firmware updates, flight log export, and charging
Screen resolution 1920 x 1080
System Android
App SDFly3
Working temperature -10°C ~ 40°C / 14°F ~ 104°F

Camera (G03H)

Image sensor 1/2-inch CMOS, 48MP
Aperture f/2.2
Dimensions 101.5 x 73.5 x 72.1 mm / 4.0 x 2.9 x 2.8 in
FOV D: 93°, H: 80°, V: 63°
ISO range 100 - 3200
Electronic shutter speed 1/8000s to 1s
Full video resolution 8K 15fps | 4K 30/60fps | 1080p 30/60fps
Full photo resolution 8000 x 6000 (48MP)
Photo format JPG / DNG
Video format MP4 / MOV (MPEG-4 AVC/H.264)
Memory card microSD, U3 or above recommended
Working temperature -20°C ~ 60°C / -4°F ~ 140°F
